V20S CF GS Payload 25kg Bowl 100 mm

Tripod System incl. V20S Fluid Head, ENG/CF2 Carbon Fiber Tripod, Pan Bar PB-1, Ground Spreader GS-2 & Tripod Bag

SKU: CMG-V20S-GS-CF-TRISYS
EAN-13: 8718591676444

Specifications

Bowl Diameter	100 mm
Section	2 Stages
Material	Carbon Fiber
Camera Platform Type	Mini Euro plate
Camera Plate	Camgear WP-3 1/4" screw, 3/8" screw
Counterbalance System	10 steps (1-8 & 2 adjustable levers)
Pan & Tilt Drag	8 steps (1-8)
Pan & Tilt Range	Pan: 360° / Tilt: +90/-75°
Temperature Range	-40°C to +60°C / -40°F to +140°F
Levelling Bubble	Illuminated
Pan Bar	Camgear PB-1
Maximum Payload	25 kg / 55.12 lbs
Weight	8.1 kg / 17.86 lbs
Height Range	61 cm-170 cm / 24 inch-66.9 inch
Transport Length	88 cm / 34.6 inch
Sliding Range	70 mm / 2.75 inch

V-Series

ENG/CF2 GS Carbon Fiber Tripod Payload 75kg Bowl 100 mm

2-Stage 100mm bowl Tripod for ENG-work with Ground Spreader

SKU: CMG-ENG-CF2-GS-TRIPOD
EAN-13: 8718591676659

Specifications

Bowl Diameter	100 mm
Section	2 Stages
Material	Carbon Fiber
Maximum Payload	75 kg / 165.35 lbs
Weight	4.16 kg / 9.17 lbs
Height Range	45 cm-154 cm / 17.1 inch-60.6 inch
Transport Length	72 cm / 28.3 inch

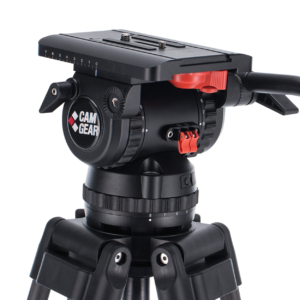

V20S Fluid Head Payload 25kg Bowl 100 mm

Fluid Head incl. Wedge Plate WP-3, Bowl Clamp BC-2 & Pan Bar PB-1

SKU: CMG-V20S-FLHEAD
EAN-13: 8718591676406

Specifications

Bowl Diameter	100 mm
Camera Platform Type	Mini Euro plate
Camera Plate	Camgear WP-3 1/4" screw, 3/8" screw
Counterbalance System	9 steps (1-8 & 1 adjustable lever)
Pan & Tilt Drag	8 steps (1-8)
Pan & Tilt Range	Pan: 360° / Tilt: +90/-75°
Temperature Range	-40°C to +60°C / -40°F to +140°F
Levelling Bubble	Illuminated
Pan Bar	Camgear PB-1
Maximum Payload	25 kg / 55.12 lbs
Weight	3.2 kg / 7.05 lbs
Sliding Range	70 mm / 2.75 inch

V-Series

Tripod Soft Bag SB-1

For DV6P, V10, V10P, V12, V15P & V20S Tripod Systems

SKU: CMG-SOFTBAG-1
EAN-13: 8718591676918

Specifications

Weight	1.1 kg / 2.43 lbs

Included with V20S CF GS

V20S Fluid Head

CMG-V20S-FLHEAD-2

ENG/CF2 GS Carbon Fiber Tripod

CMG-ENG-CF2-TRIPOD

Ground Spreader GS-2

CMG-GROUNDSPRDR-2-1

Pan Bar PB-1

Wedge Plate WP-3

CMG-WEDGEPLATE-WP3

Mid Level Spreader MSP-2

CMG-MIDSPREADER-2

Rubber Feet RF-1 (set of 3)

CMG-RUBBERFEET-1

Tripod Soft Bag SB-1
