V10P AL MS
Payload 13 kg Bowl 100 mm
- System
- Fluid Head
Tripod System incl. V10P Fluid Head, T100/AL2 Aluminum Tripod, Pan Bar PB-1, Mid Level Spreader MSP-2, Rubber Feet RF-1 (x3) & Tripod Bag
V-Series
SKU:
CMG-V10P-MS-AL-TRISYS
EAN-13:
8718591676260
Specifications
| Maximum Payload | 13 kg / 28,66 lbs |
|---|---|
| Bowl Diameter | 100 mm |
| Section | 2 Stages |
| Material | Aluminum |
| Camera Platform Type | Mini Euro plate |
| Camera Plate | Camgear WP-1 1/4" screw, 3/8" screw |
| Counterbalance System | 8 steps (1-8) |
| Pan & Tilt Drag | 4 steps (1-4) |
| Pan & Tilt Range | Pan: 360° / Tilt: +90/-75° |
| Temperature Range | '-40°C to +60°C/-40 to +140°F |
| Levelling Bubble | Yes, not illuminated |
| Pan Bar | Camgear PB-1 |
| Weight | 7,48 kg / 16,49 lbs |
| Height Range | 65 cm – 165 cm / 25.6 inch – 65 inch |
| Transport Length | 86 cm / 33.9 inch |
| Sliding Range | 60 mm / 2.36 inch |
You may also like…
-
Bowl Clamp BC-2
Bowl Clamp BC-2
For DV6P, V10, V10P, V12, V15P, V20S, V20P, V25P & all Elite Tripod Systems
-
T100/AL2 MS Aluminum Tripod
T100/AL2 MS Aluminum Tripod
2-Stage 100mm bowl Tripod with Mid Level SpreaderV-Series
Maximum Payload
40 kg / 88.18 lbs
Head Fitting
100 mm
Height Range
52 cm - 158 cm / 20.5 inch - 62.2 inch
Weight
4.54 kg / 10.01 lbs
Related products
-
T75/AL2 GS Aluminum Tripod
T75/AL2 GS Aluminum Tripod
2-Stage 75mm bowl Tripod with Ground SpreaderV-Series
Maximum Payload
40 kg / 88.18 lbs
Head Fitting
75 mm
Height Range
43 cm - 158 cm / 17 inch - 62.2 inch
Weight
4 kg / 8.82 lbs
-
V10 AL MS
V10 AL MS
Tripod System incl. V10 Fluid Head, T100/AL2 Aluminum Tripod, Pan Bar PB-1, Mid Level Spreader MSP-2, Rubber Feet RF-1 (x3) & Tripod BagV-Series
Maximum Payload
12 kg / 26.46 lbs
Head Fitting
100 mm
Height Range
65 cm - 165 cm / 25.6 inch - 65 inch
Weight
7.48 kg / 16.49 lbs
-
T100/CF2 MS Carbon Fiber Tripod
T100/CF2 MS Carbon Fiber Tripod
2-Stage 100mm bowl Tripod with Mid Level SpreaderV-Series
Maximum Payload
40 kg / 88.18 lbs
Head Fitting
100 mm
Height Range
52 cm - 158 cm / 20.5 inch - 62.2 inch
Weight
3.72 kg / 8.2 lbs
-
V10 AL GS
V10 AL GS
Tripod System incl. V10 Fluid Head, T100/AL2 Aluminum Tripod, Pan Bar PB-1, Ground Spreader GS-2 & Tripod BagV-Series
Maximum Payload
12 kg / 26.46 lbs
Head Fitting
100 mm
Height Range
56 cm - 165 cm / 21.7 inch - 65 inch
Weight
7.04 kg / 15.52 lbs

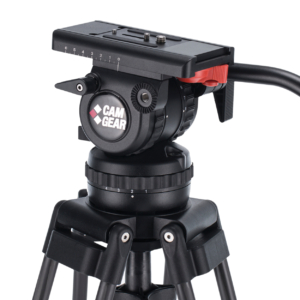

V10P Fluid Head
