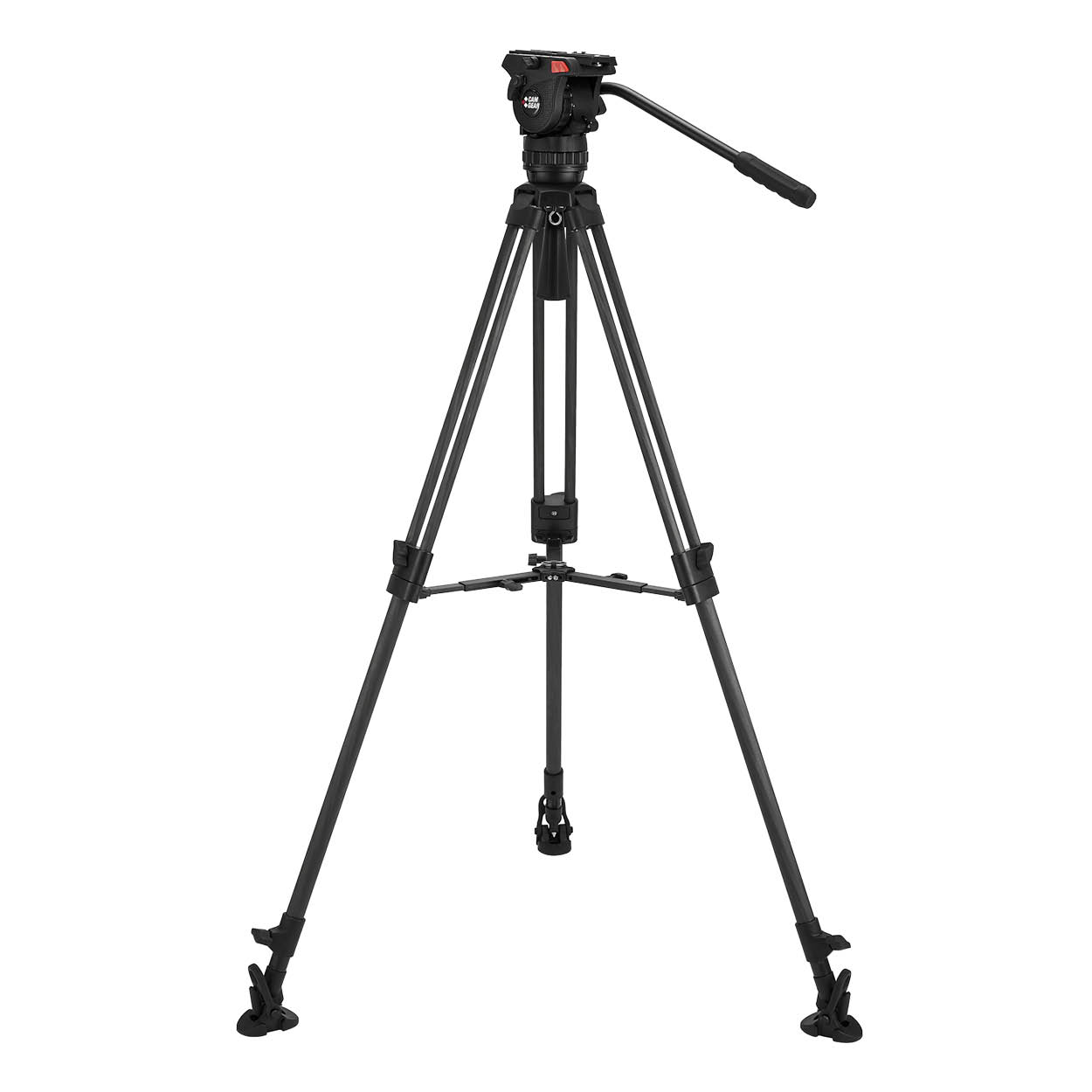

MARK 4 CF MS
Payload 7 kg Bowl 75 mm
- System
- Fluid Head
Tripod System incl. MARK 4 Fluid Head, MARK CF/MS2 Carbon Fiber Tripod, Pan Bar PB-MARK, Mid Level Spreader & Tripod Bag
MARK-Series
SKU:
CMG-M4-MS-CF-TRISYS
EAN-13:
8718591676086
Specifications
| Maximum Payload | 7 kg / 15,43 lbs |
|---|---|
| Bowl Diameter | 75 mm |
| Section | 2 Stages |
| Material | Carbon Fiber |
| Camera Platform Type | Sliding camera plate |
| Camera Plate | Camgear SP-MARK 1/4" screw, 3/8" screw |
| Counterbalance System | 6 steps (1-6) |
| Pan & Tilt Drag | 4 steps (1-4) |
| Pan & Tilt Range | Pan: 360° / Tilt: +90/-75° |
| Temperature Range | '-40°C to +60°C/-40 to +140°F |
| Levelling Bubble | Yes, not illuminated |
| Pan Bar | Camgear PB-MARK |
| Weight | 3,9 kg / 8,6 lbs |
| Height Range | 79 cm – 169 cm / 31.1 inch – 66.5 inch |
| Transport Length | 84 cm / 33 inch |
| Sliding Range | 104 mm / 4.1 inch |
