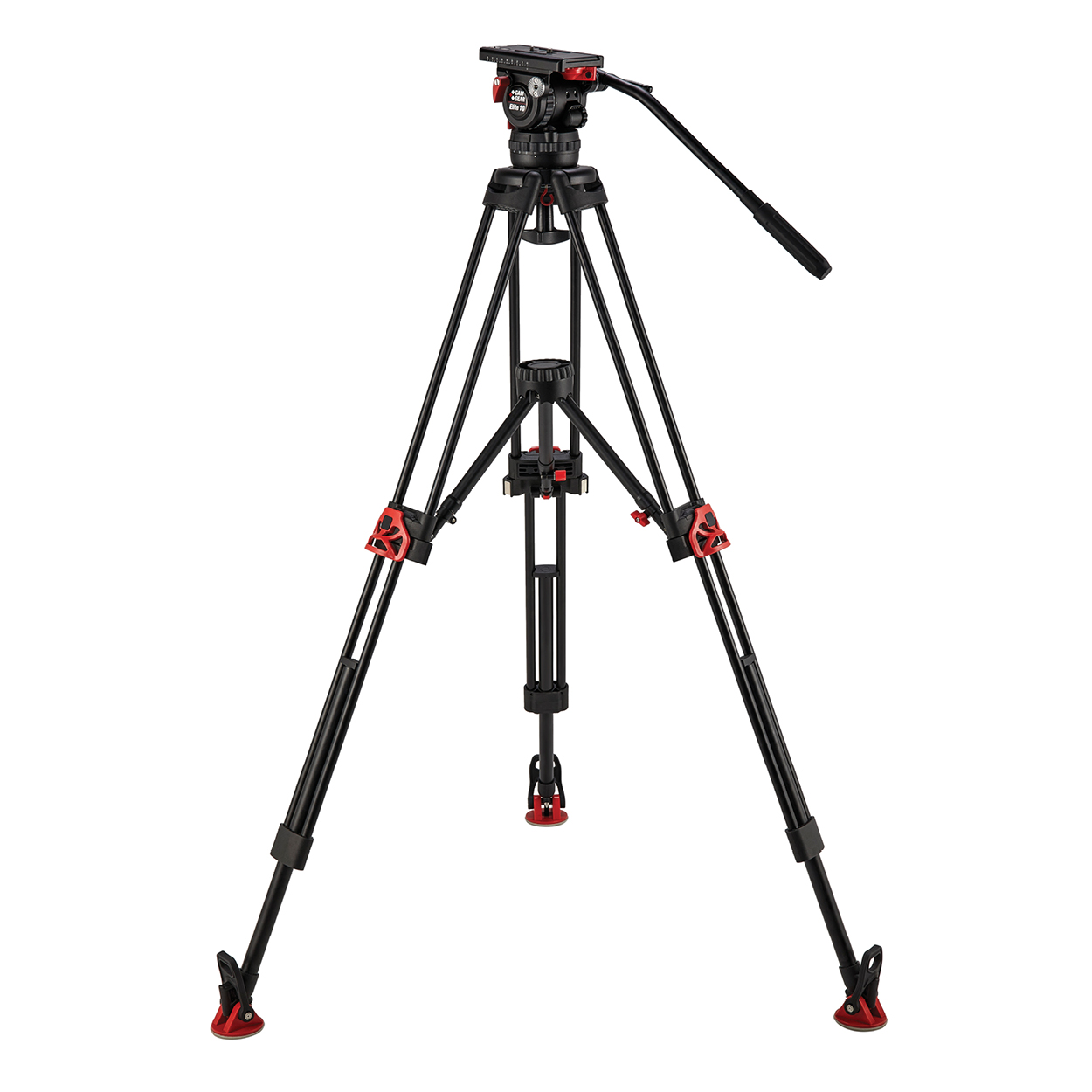

Elite 10 AL MS
Payload 12 kg Bowl 100 mm
- System
- Fluid Head
Tripod System incl. Elite 10 Fluid Head, 3S-Fix T100/AL2 Aluminum Tripod, Elite Pan Bar ELPB-1, Mid Level Spreader MSP-3, Rubber Feet RF-2 (x3) & Tripod Bag
Elite-Series
SKU:
CMG-EL10-MS-AL-TRISYS
EAN-13:
8718591677342
Specifications
| Maximum Payload | 12 kg / 26,46 lbs |
|---|---|
| Bowl Diameter | 100 mm |
| Section | 2 Stages |
| Material | Aluminum |
| Camera Platform Type | Touch & Go 16 |
| Camera Plate | Camgear TNG-16 1/4" screw, 3/8" screw |
| Counterbalance System | 12 steps (1-12) |
| Pan & Tilt Drag | 4 steps (1-4) |
| Pan & Tilt Range | Pan: 360° / Tilt: +90/-75° |
| Temperature Range | '-40°C to +60°C/-40 to +140°F |
| Levelling Bubble | Yes, not illuminated |
| Pan Bar | Camgear ELPB-1 |
| Weight | 9,16 kg / 20,19 lbs |
| Height Range | 56 cm – 161 cm / 22 inch – 63.4 inch |
| Transport Length | 87 cm / 34.3 inch |
| Sliding Range | 80 mm / 3.15 inch |
