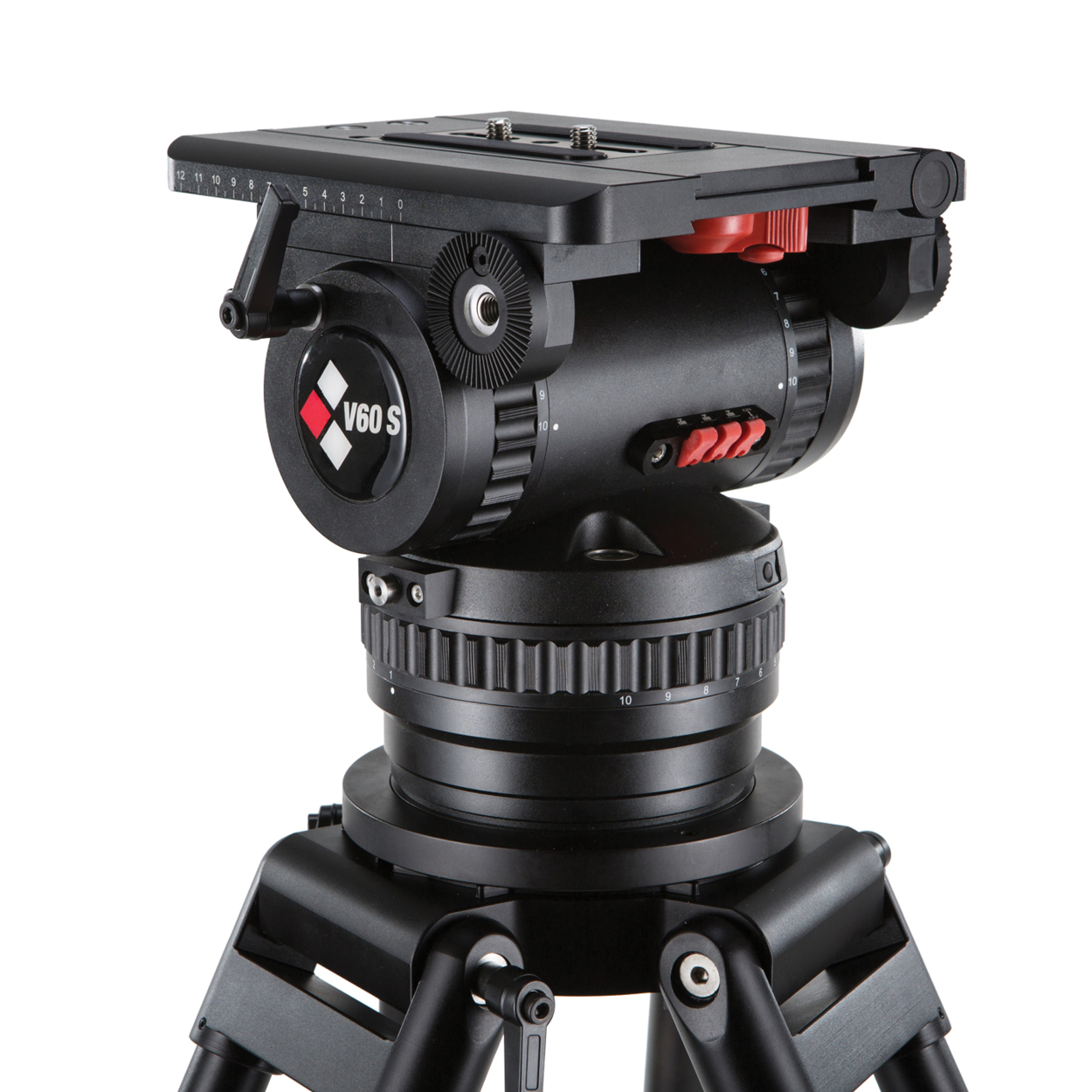

V60S EFP Fluid Head
Bowl 4-bolt Flat Base
4-Bolt flat base Fluid Head incl. Wedge Plate WP-6 & 2x Telescopic Pan Bar PB-3 (Left & Right) (Mitchell Adapter and Locking Knob are not included)
V-Series
SKU:
CMG-V60S-EFP-FLHEAD
EAN-13:
8718591676574
Specifications
| Maximum Payload | 70 kg / 154,32 lbs |
|---|---|
| Bowl Diameter | 100 mm |
| Camera Platform Type | Euro plate |
| Camera Plate | Camgear WP-6 , Double 3/8" screw |
| Counterbalance System | 10+3 steps (10-1 & 3 adjustable levers) |
| Pan & Tilt Drag | 10 steps (1-10) |
| Pan & Tilt Range | Pan: 360° / Tilt: +90/-75° |
| Temperature Range | '-40°C to +60°C/-40 to +140°F |
| Levelling Bubble | Yes, not illuminated |
| Pan Bar | Camgear Telescopic PB-3 (set of 2, left & right) |
| Weight | 12,66 kg / 27,91 lbs |
| Sliding Range | 120 mm / 4.7 inch |
