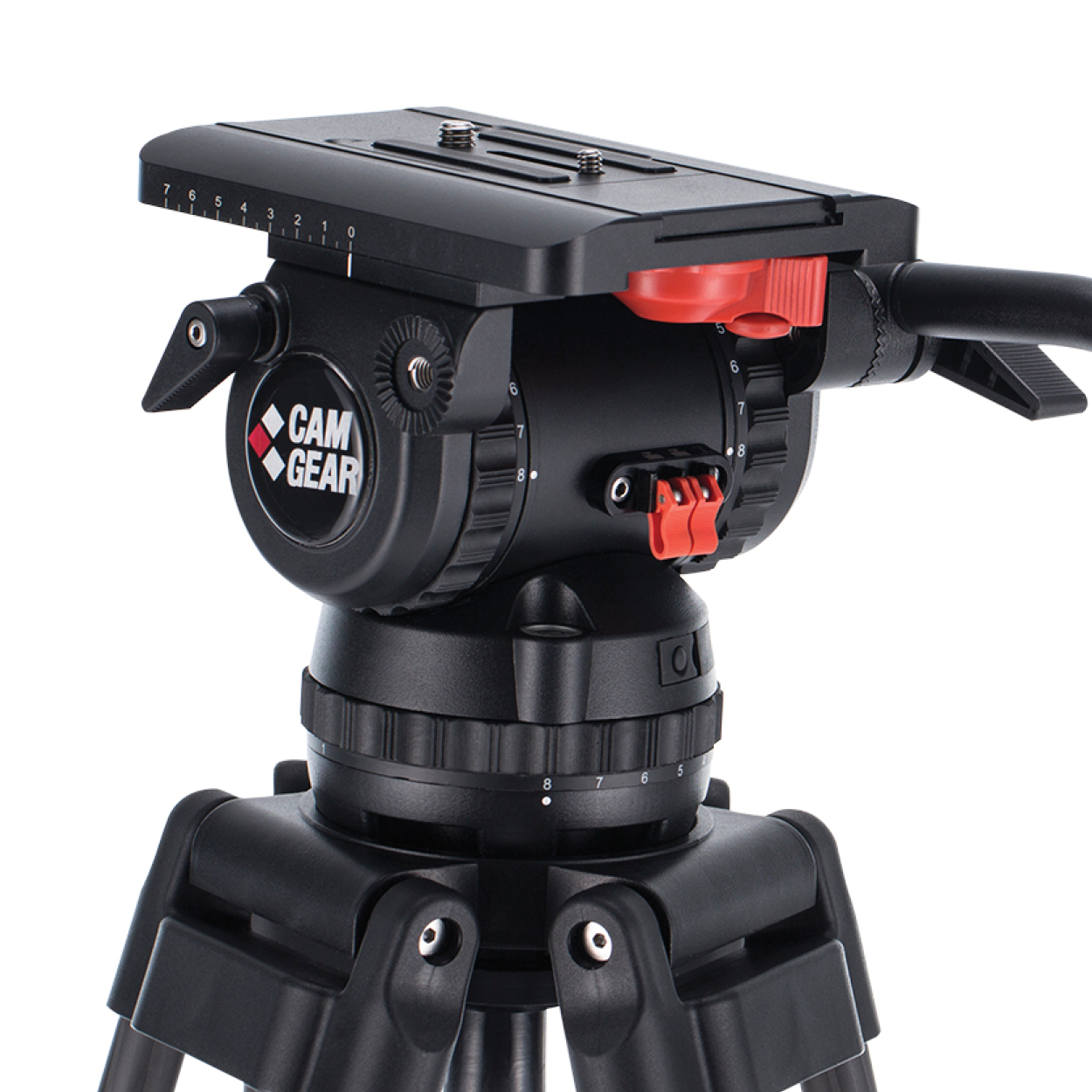

V20S Fluid Head
Bowl 100 mm
Fluid Head incl. Wedge Plate WP-3 & Pan Bar PB-1
V-Series
SKU:
CMG-V20S-FLHEAD
EAN-13:
8718591676406
Specifications
| Maximum Payload | 25 kg / 55,12 lbs |
|---|---|
| Bowl Diameter | 100 mm |
| Camera Platform Type | Mini Euro plate |
| Camera Plate | Camgear WP-3 1/4" screw, 3/8" screw |
| Counterbalance System | 9 steps (1-8 & 1 adjustable lever) |
| Pan & Tilt Drag | 8 steps (1-8) |
| Pan & Tilt Range | Pan: 360° / Tilt: +90/-75° |
| Temperature Range | '-40°C to +60°C/-40 to +140°F |
| Levelling Bubble | Yes, not illuminated |
| Pan Bar | Camgear PB-1 |
| Weight | 3,2 kg / 7,05 lbs |
| Sliding Range | 70 mm / 2.75 inch |
