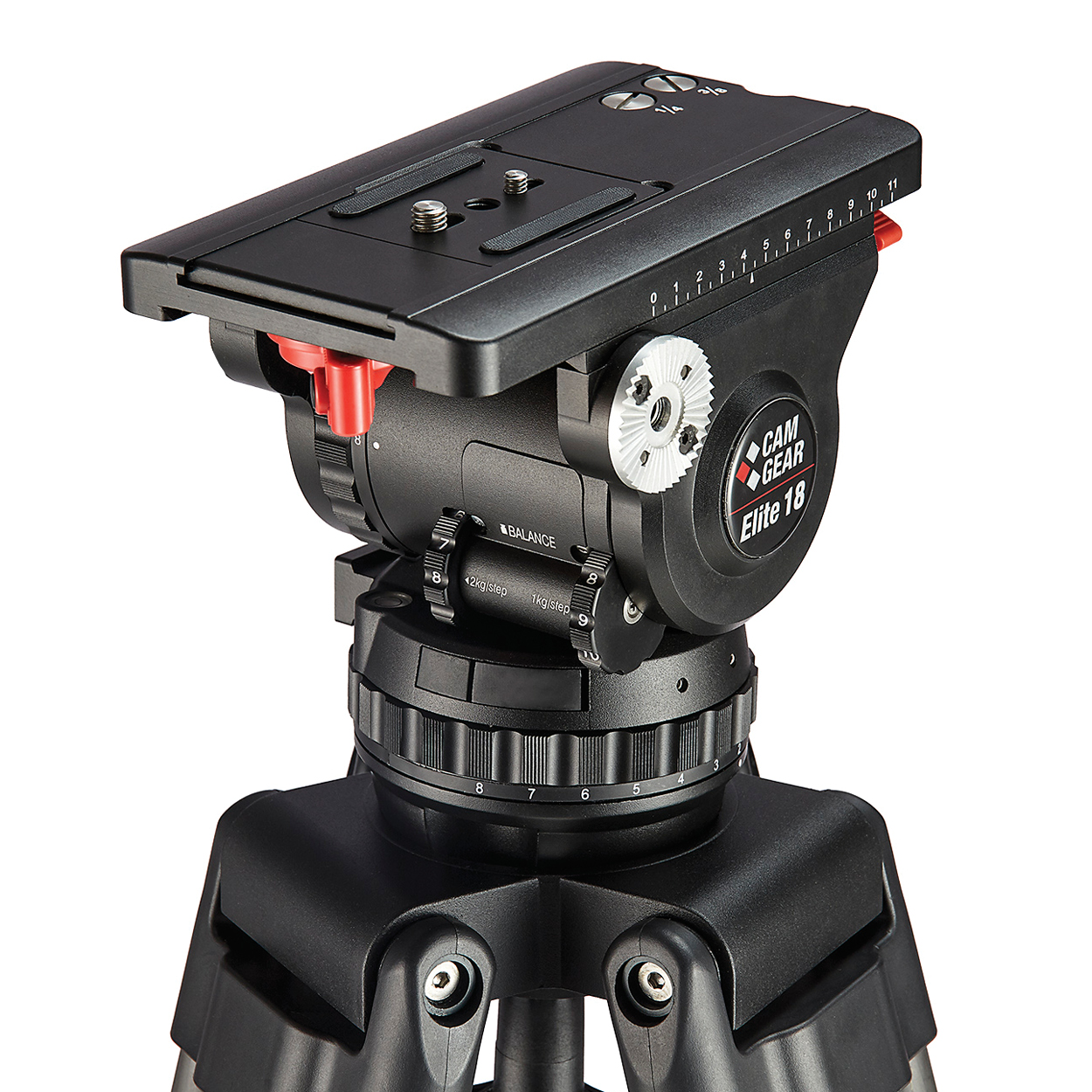

Elite 18 Fluid Head
Bowl 100 mm
Fluid Head incl. Elite Wedge Plate TNG-16 & Elite Telescopic Pan Bar ELPB-2 (set of 2)
Elite-Series
SKU:
CMG-EL18-FLHEAD
EAN-13:
8718591677489
Specifications
| Maximum Payload | 25 kg / 55,12 lbs |
|---|---|
| Bowl Diameter | 100 mm |
| Camera Platform Type | Touch & Go 16 |
| Camera Plate | Camgear TNG-16 1/4" screw, 3/8" screw |
| Counterbalance System | 8+10 steps (1-8, 1-10) |
| Pan & Tilt Drag | 8 steps (1-8) |
| Pan & Tilt Range | Pan: 360° / Tilt: +90/-75° |
| Temperature Range | '-40°C to +60°C/-40 to +140°F |
| Levelling Bubble | Yes, not illuminated |
| Pan Bar | Camgear Telescopic ELPB-2 (set of 2, left & right) |
| Weight | 4,8 kg / 10,58 lbs |
| Sliding Range | 110 mm / 4.33 inch |
