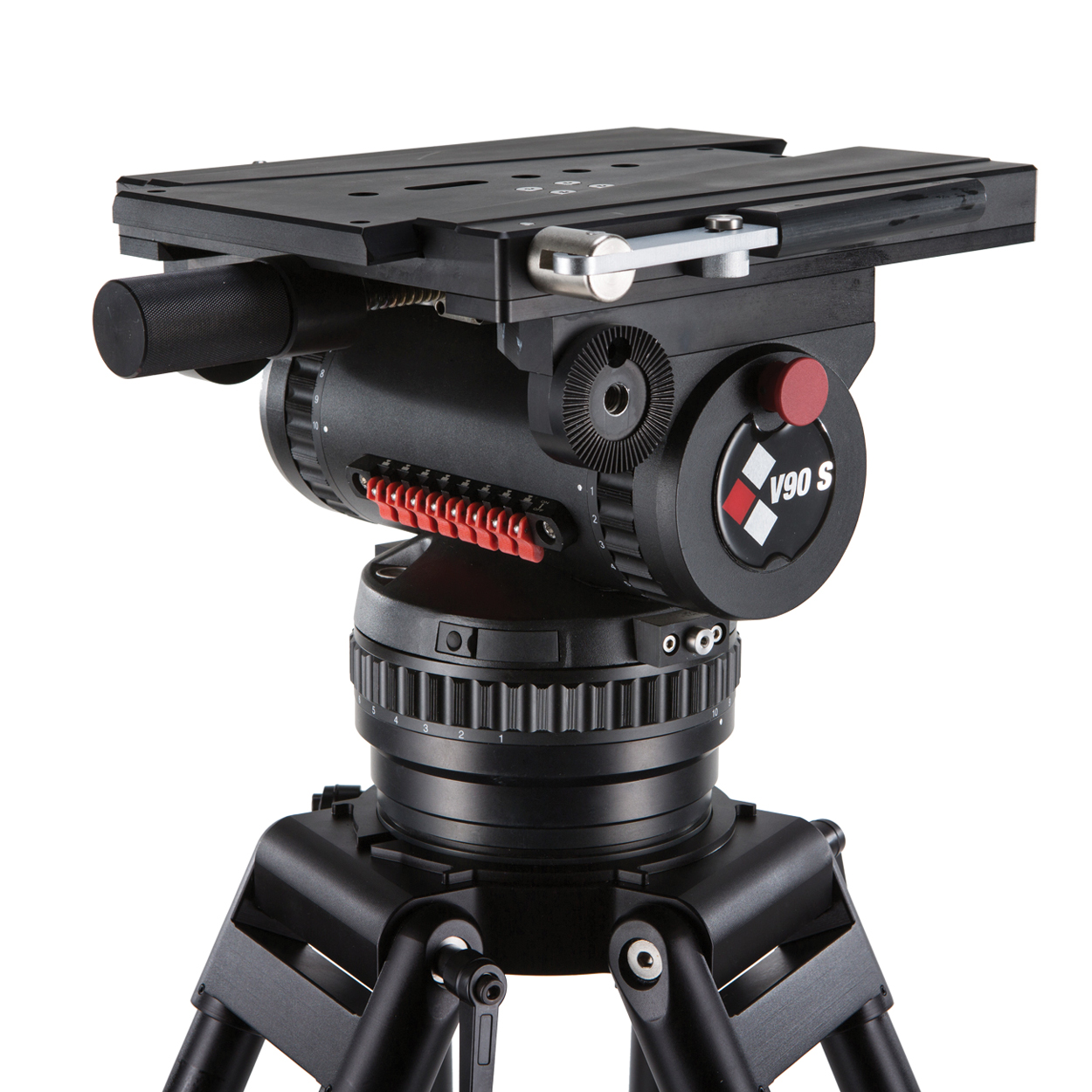

V90 Studio/OB Fluid Head
Bowl 4-bolt Flat Base
4-Bolt flat base Fluid Head incl. V-Plate & 2x Telescopic Pan Bar PB-3 (Left & Right) (Mitchell Adapter and Locking Knob are not included)
V-Series
SKU:
CMG-V90STOB-FLHEAD
EAN-13:
8718591676598
Specifications
| Maximum Payload | 90 kg / 198,42 lbs |
|---|---|
| Bowl Diameter | 100 mm |
| Camera Platform Type | V-Plate |
| Camera Plate | Camgear V-Plate , Double 3/8" screw |
| Counterbalance System | 10+8 steps (10-1 & 8 adjustable levers) |
| Pan & Tilt Drag | 10 steps (1-10) |
| Pan & Tilt Range | Pan: 360° / Tilt: +90/-75° |
| Temperature Range | '-40°C to +60°C/-40 to +140°F |
| Levelling Bubble | Yes, not illuminated |
| Pan Bar | Camgear Telescopic PB-3 (set of 2, left & right) |
| Weight | 17,28 kg / 38,1 lbs |
| Sliding Range | 180 mm / 7.1 inch |
Related products
-
T75/CF2 MS Carbon Fiber Tripod
T75/CF2 MS Carbon Fiber Tripod
2-Stage 75mm bowl Tripod with Mid Level SpreaderV-Series
Maximum Payload
40 kg / 88.18 lbs
Head Fitting
75 mm
Height Range
52 cm - 158 cm / 20.5 inch - 62.2 inch
Weight
3.62 kg / 7.98 lbs
-

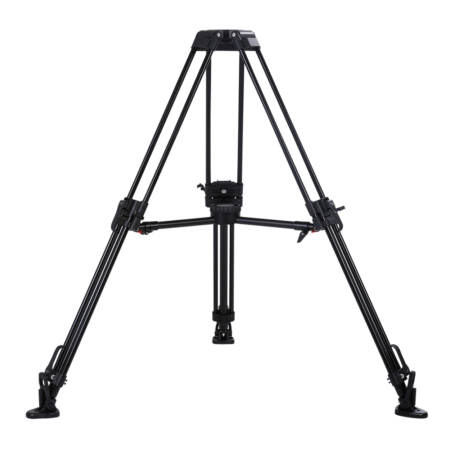

V10 AL GS
V10 AL GS
Tripod System incl. V10 Fluid Head, T100/AL2 Aluminum Tripod, Pan Bar PB-1, Ground Spreader GS-2 & Tripod BagV-Series
Maximum Payload
12 kg / 26.46 lbs
Head Fitting
100 mm
Height Range
56 cm - 165 cm / 21.7 inch - 65 inch
Weight
7.04 kg / 15.52 lbs
-

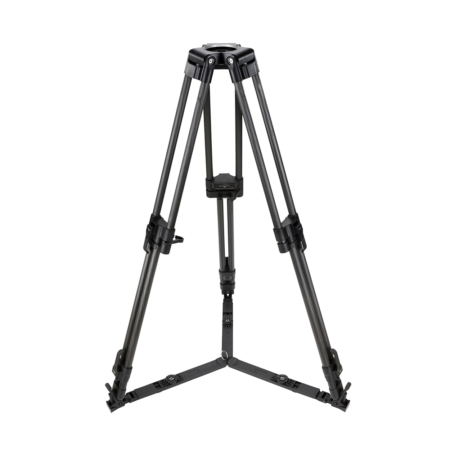

EFP150/CF2 MS Carbon Fiber Tripod
