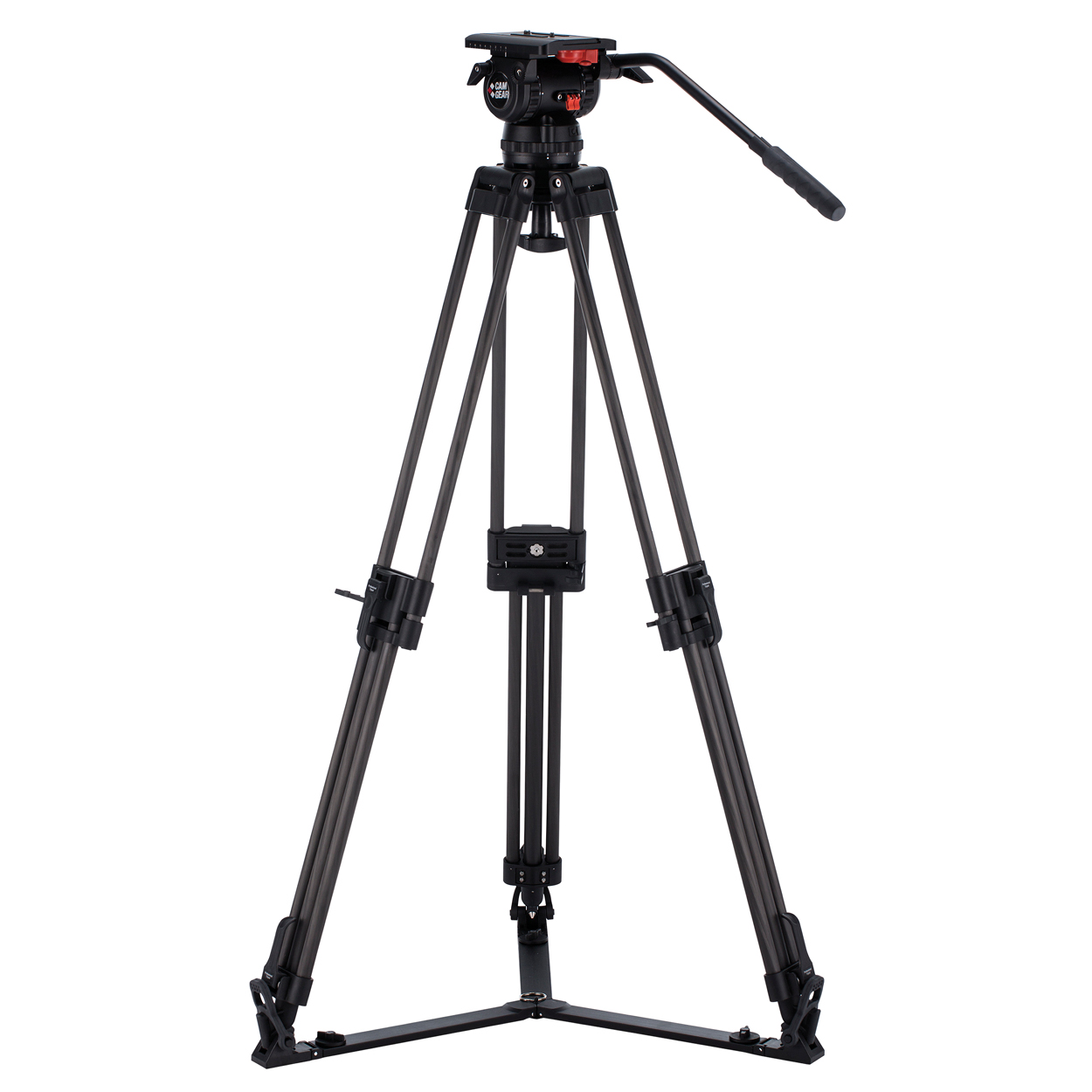

V20S CF GS
Payload 25 kg Bowl 100 mm
- System
- Fluid Head

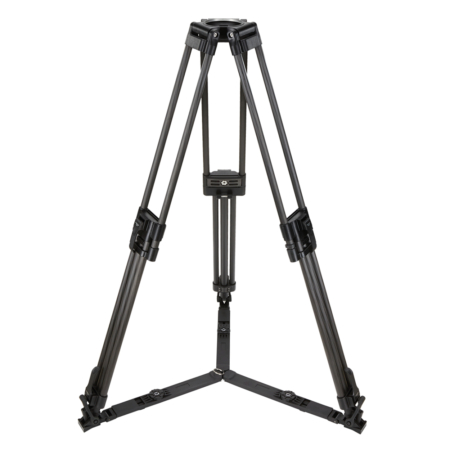

Tripod System incl. V20S Fluid Head, ENG/CF2 Carbon Fiber Tripod, Pan Bar PB-1, Ground Spreader GS-2 & Tripod Bag
V-Series
SKU:
CMG-V20S-GS-CF-TRISYS
EAN-13:
8718591676444
Specifications
| Maximum Payload | 25 kg / 55,12 lbs |
|---|---|
| Bowl Diameter | 100 mm |
| Section | 2 Stages |
| Material | Carbon Fiber |
| Camera Platform Type | Mini Euro plate |

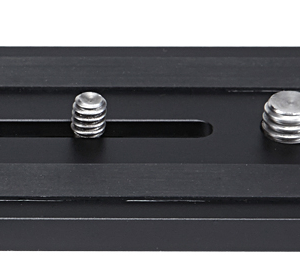

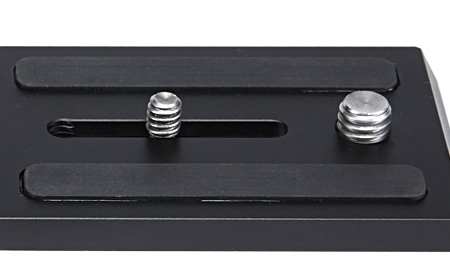

| Camera Plate | Camgear WP-3 1/4" screw, 3/8" screw |
| Counterbalance System | 10 steps (1-8 & 2 adjustable levers) |
| Pan & Tilt Drag | 8 steps (1-8) |
| Pan & Tilt Range | Pan: 360° / Tilt: +90/-75° |
| Temperature Range | '-40°C to +60°C/-40 to +140°F |
| Levelling Bubble | Yes, not illuminated |
| Pan Bar | Camgear PB-1 |
| Weight | 8,1 kg / 17,86 lbs |
| Height Range | 61 cm – 170 cm / 24 inch – 66.9 inch |
| Transport Length | 88 cm / 34.6 inch |
| Sliding Range | 70 mm / 2.75 inch |
You may also like…
-
Rubber Feet RF-1 (set of 3)
Rubber Feet RF-1 (set of 3)
Required with Mid Level Spreader MSP-2 or MSP-3
-
V20S Fluid Head
V20S Fluid Head
Fluid Head incl. Wedge Plate WP-3 & Pan Bar PB-1V-Series
Maximum Payload
25 kg / 55.12 lbs
Head Fitting
100 mm
Grade of drag Pan/Tilt
8 steps (1 - 8)
Counterbalance
9 steps
Related Products
Related products
-
Telescopic Pan Bar PB-4 (set of 2)
Telescopic Pan Bar PB-4 (set of 2)
For DV6P, V10, V10P, V12, V15P & V20S Tripod Systems

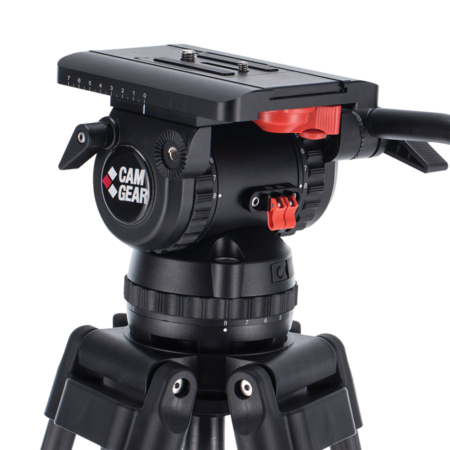

V20S Fluid Head
