V20S AL MS
Payload 25 kg Bowl 100 mm
- System
- Fluid Head

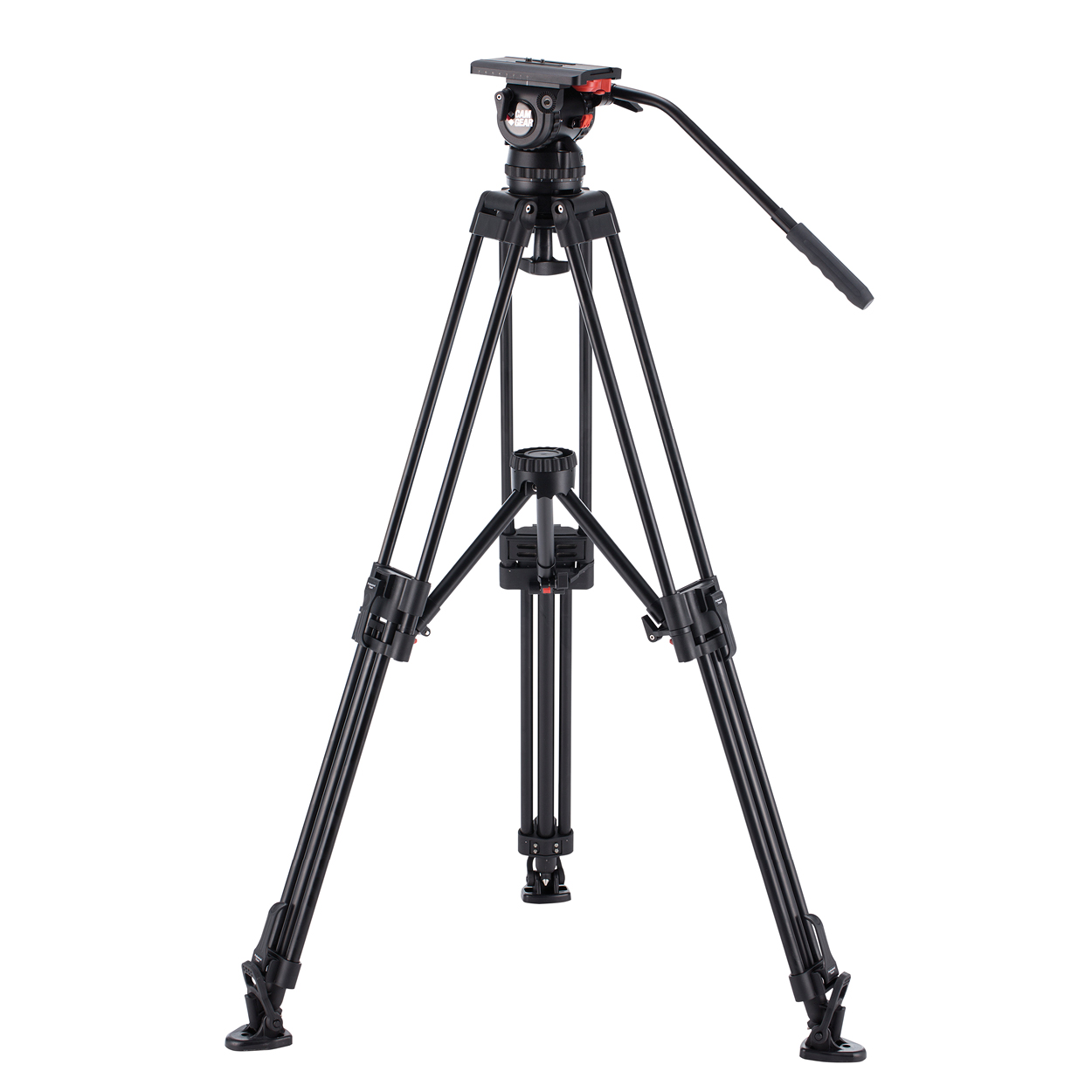

Tripod System incl. V20S Fluid Head, ENG/AL2 Aluminum Tripod, Pan Bar PB-1, Mid Level Spreader MSP-2, Rubber Feet RF-1 (x3) & Tripod Bag
V-Series
SKU:
CMG-V20S-MS-AL-TRISYS
EAN-13:
8718591676413
Specifications
| Maximum Payload | 25 kg / 55,12 lbs |
|---|---|
| Bowl Diameter | 100 mm |
| Section | 2 Stages |
| Material | Aluminum |
| Camera Platform Type | Mini Euro plate |
| Camera Plate | Camgear WP-3 1/4" screw, 3/8" screw |
| Counterbalance System | 10 steps (1-8 & 2 adjustable levers) |
| Pan & Tilt Drag | 8 steps (1-8) |
| Pan & Tilt Range | Pan: 360° / Tilt: +90/-75° |
| Temperature Range | '-40°C to +60°C/-40 to +140°F |
| Levelling Bubble | Yes, not illuminated |
| Pan Bar | Camgear PB-1 |
| Weight | 9 kg / 19,84 lbs |
| Height Range | 69 cm – 166 cm / 27.2 inch – 65.4 inch |
| Transport Length | 88 cm / 34.6 inch |
| Sliding Range | 70 mm / 2.75 inch |
