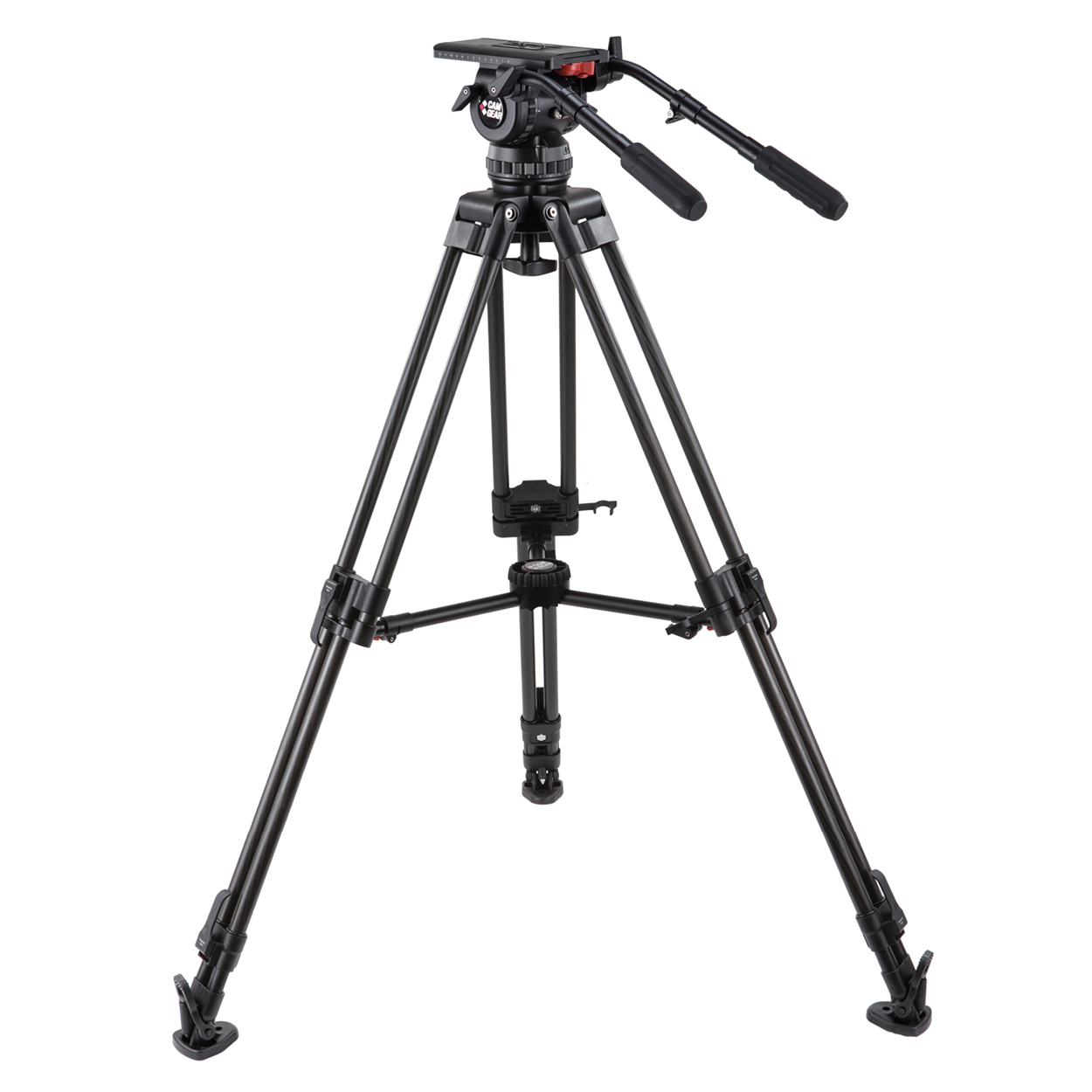

V20P EFP CF MS
Payload 25 kg Bowl 100 mm
- System
- Fluid Head
Tripod System incl. V20P Fluid Head, EFP100/CF2 Carbon Fiber Tripod, 2x Telescopic Pan Bar PB-2 (Left & Right), Mid Level Spreader MSP-2, Rubber Feet RF-1 (x3) & Tripod Bag
V-Series
SKU:
CMG-V20P-MS-CF-TRISYS
EAN-13:
8718591676468
Specifications
| Maximum Payload | 25 kg / 55,12 lbs |
|---|---|
| Bowl Diameter | 100 mm |
| Section | 2 Stages |
| Material | Carbon Fiber |
| Camera Platform Type | Mini Euro plate |
| Camera Plate | Camgear WP-4 1/4" screw, 3/8" screw |
| Counterbalance System | 10 steps (1-8 & 2 adjustable levers) |
| Pan & Tilt Drag | 8 steps (1-8) |
| Pan & Tilt Range | Pan: 360° / Tilt: +90/-75° |
| Temperature Range | '-40°C to +60°C/-40 to +140°F |
| Levelling Bubble | Yes, not illuminated |
| Pan Bar | Camgear Telescopic PB-2 (set of 2, left & right) |
| Weight | 10,68 kg / 23,5 lbs |
| Height Range | 73 cm – 178 cm / 28.7 inch – 70.1 inch |
| Transport Length | 96 cm / 37.8 inch |
| Sliding Range | 120 mm / 4.72 inch |
You may also like…
-
EFP100/CF2 MS Carbon Fiber Tripod
EFP100/CF2 MS Carbon Fiber Tripod
2-Stage 100mm bowl Tripod for EFP-work with Mid Level SpreaderV-Series
Maximum Payload
100 kg / 220.46 lbs
Head Fitting
100 mm
Height Range
54 cm - 159 cm / 21.2 inch - 62.6 inch
Weight
5.3 kg / 11.68 lbs
Related Products
Related products

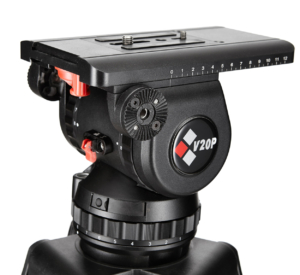

V20P Fluid Head
