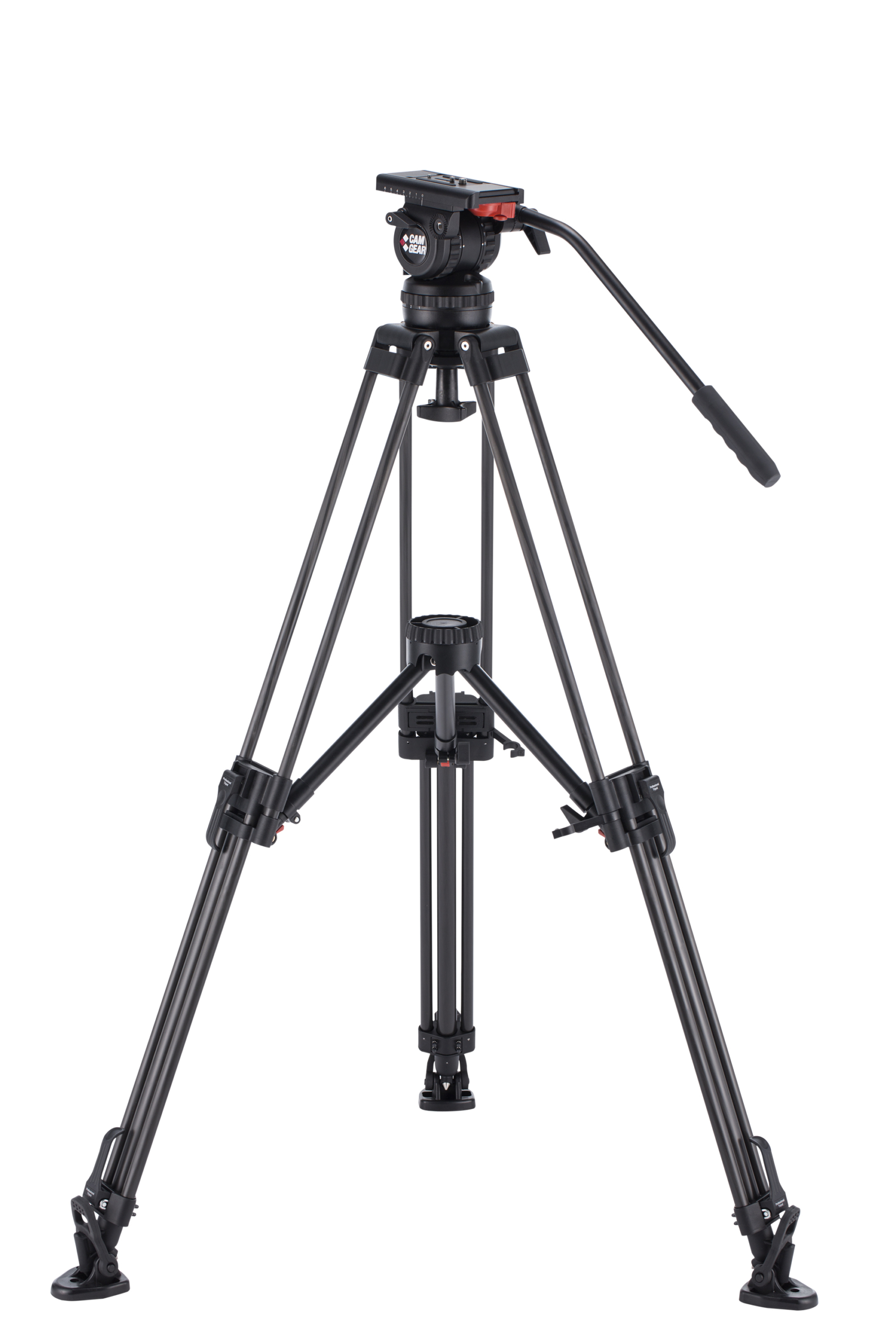

V10P CF MS
Payload 12 kg Bowl 100 mm
- System
- Fluid Head
Tripod System incl. V10P Fluid Head, T100/CF2 Carbon Fiber Tripod, Pan Bar PB-1, Mid Level Spreader MSP-2, Rubber Feet RF-1 (x3) & Tripod Bag
V-Series
SKU:
CMG-V10P-MS-CF-TRISYS
EAN-13:
8718591676284
Specifications
| Maximum Payload | 13 kg / 28,66 lbs |
|---|---|
| Bowl Diameter | 100 mm |
| Section | 2 Stages |
| Material | Carbon Fiber |
| Camera Platform Type | Mini Euro plate |
| Camera Plate | Camgear WP-1 1/4" screw, 3/8" screw |
| Counterbalance System | 8 steps (1-8) |
| Pan & Tilt Drag | 4 steps (1-4) |
| Pan & Tilt Range | Pan: 360° / Tilt: +90/-75° |
| Temperature Range | '-40°C to +60°C/-40 to +140°F |
| Levelling Bubble | Yes, not illuminated |
| Pan Bar | Camgear PB-1 |
| Weight | 6,66 kg / 14,68 lbs |
| Height Range | 65 cm – 165 cm / 25.6 inch – 65 inch |
| Transport Length | 86 cm / 33.9 inch |
| Sliding Range | 60 mm / 2.36 inch |
You may also like…
-

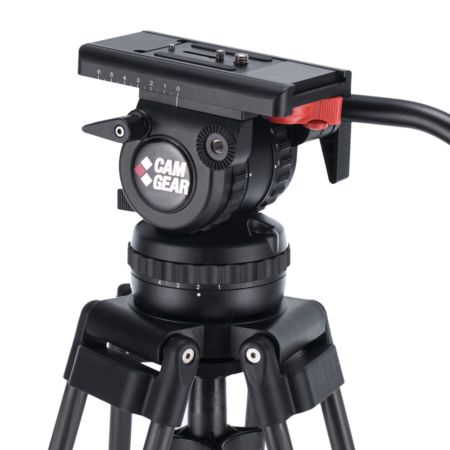

V10P Fluid Head
V10P Fluid Head
Fluid Head incl. Wedge Plate WP-1 & Pan Bar PB-1V-Series
Maximum Payload
13 kg / 28.66 lbs
Head Fitting
100 mm
Grade of drag Pan/Tilt
4 steps (1 - 4)
Counterbalance
8 steps (1-8)
Related products
-
V10 AL MS
V10 AL MS
Tripod System incl. V10 Fluid Head, T100/AL2 Aluminum Tripod, Pan Bar PB-1, Mid Level Spreader MSP-2, Rubber Feet RF-1 (x3) & Tripod BagV-Series
Maximum Payload
12 kg / 26.46 lbs
Head Fitting
100 mm
Height Range
65 cm - 165 cm / 25.6 inch - 65 inch
Weight
7.48 kg / 16.49 lbs
-
DV6P Fluid Head
DV6P Fluid Head
Fluid Head incl. Wedge Plate WP-2 & Pan Bar PB-1V-Series
Maximum Payload
10 kg / 22.05 lbs
Head Fitting
75 mm
Grade of drag Pan/Tilt
4 steps (1 - 4)
Counterbalance
8 steps (1 - 8)
-

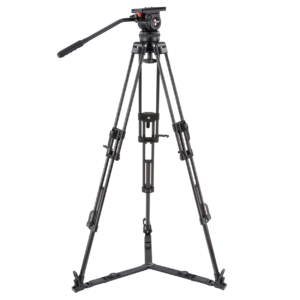

V10 CF GS
V10 CF GS
Tripod System incl. V10 Fluid Head, T100/CF2 Carbon Fiber Tripod, Pan Bar PB-1, Ground Spreader GS-2 & Tripod BagV-Series
Maximum Payload
12 kg / 26.46 lbs
Head Fitting
100 mm
Height Range
56 cm - 165 cm / 21.7 inch - 65 inch
Weight
6.22 kg / 13.71 lbs
-
DV6P AL MS
DV6P AL MS
Tripod System incl. DV6P Fluid Head, T75/AL2 Aluminum Tripod, Pan Bar PB-1, Mid Level Spreader MSP-2, Rubber Feet RF-1 (x3) & Tripod BagV-Series
Maximum Payload
10 kg / 22.05 lbs
Head Fitting
75 mm
Height Range
64 cm - 164 cm / 25.2 inch - 64.6 inch
Weight
7.16 kg / 15.79 lbs
V10 Fluid Head
Payload 12 kg Bowl 100 mm
V-Series
Fluid Head incl. Wedge Plate WP-1 & Pan Bar PB-1
SKU: CMG-V10-FLHEAD
EAN-13: 8718591676208
Specifications
| Maximum Payload | 12 kg / 26,46 lbs |
|---|---|
| Bowl Diameter | 100 mm |
| Camera Platform Type | Mini Euro plate |
| Camera Plate | Camgear WP-1 1/4" screw, 3/8" screw |
| Counterbalance System | 6 steps (1-6) |
| Pan & Tilt Drag | 4 steps (1-4) |
| Pan & Tilt Range | Pan: 360° / Tilt: +90/-75° |
| Temperature Range | '-40°C to +60°C/-40 to +140°F |
| Levelling Bubble | Yes, not illuminated |
| Pan Bar | Camgear PB-1 |
| Weight | 2,5 kg / 5,51 lbs |
| Sliding Range | 60 mm / 2.36 inch |
