V10P CF GS
Payload 13 kg Bowl 100 mm
- System
- Fluid Head

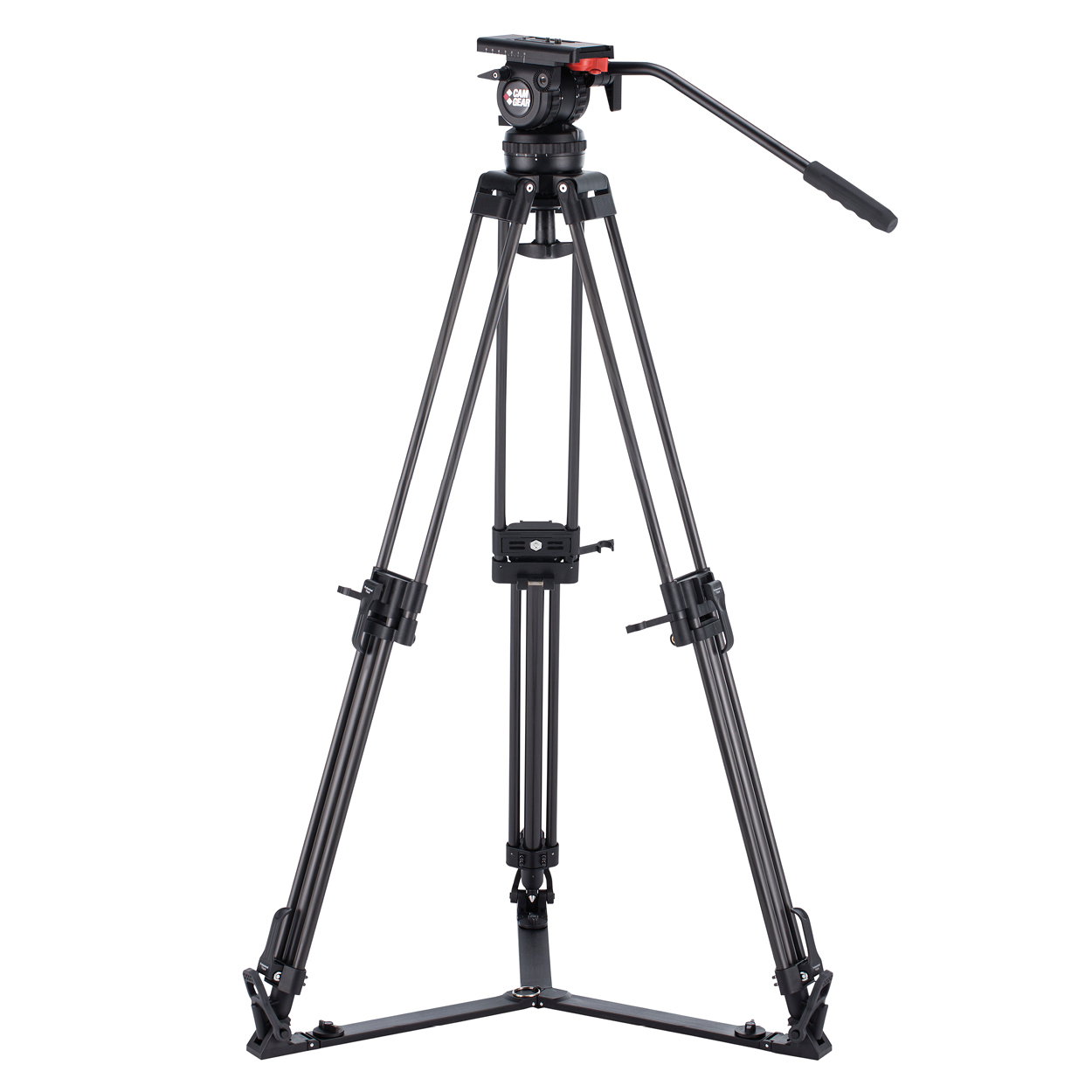

Tripod System incl. V10P Fluid Head, T100/CF2 Carbon Fiber Tripod, Pan Bar PB-1, Ground Spreader GS-2 & Tripod Bag
V-Series
SKU:
CMG-V10P-GS-CF-TRISYS
EAN-13:
8718591676291
Specifications
| Maximum Payload | 13 kg / 28,66 lbs |
|---|---|
| Bowl Diameter | 100 mm |
| Section | 2 Stages |
| Material | Carbon Fiber |
| Camera Platform Type | Mini Euro plate |
| Camera Plate | Camgear WP-1 1/4" screw, 3/8" screw |
| Counterbalance System | 8 steps (1-8) |
| Pan & Tilt Drag | 4 steps (1-4) |
| Pan & Tilt Range | Pan: 360° / Tilt: +90/-75° |
| Temperature Range | '-40°C to +60°C/-40 to +140°F |
| Levelling Bubble | Yes, not illuminated |
| Pan Bar | Camgear PB-1 |
| Weight | 6,22 kg / 13,71 lbs |
| Height Range | 56 cm – 165 cm / 21.7 inch – 65 inch |
| Transport Length | 86 cm / 33.9 inch |
| Sliding Range | 60 mm / 2.36 inch |
