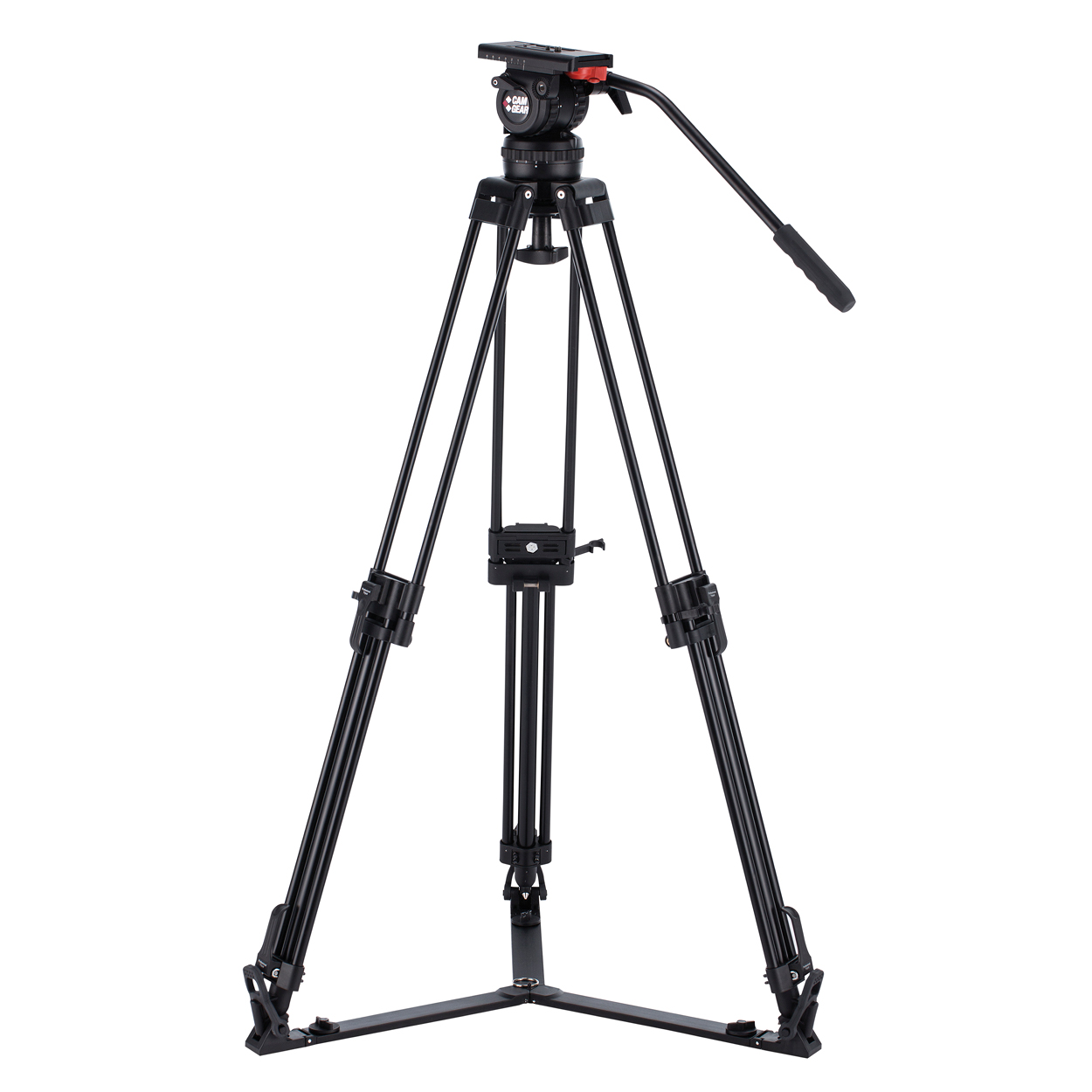

V10P AL GS
Payload 13 kg Bowl 100 mm
- System
- Fluid Head
Tripod System incl. V10P Fluid Head, T100/AL2 Aluminum Tripod, Pan Bar PB-1, Ground Spreader GS-2 & Tripod Bag
V-Series
SKU:
CMG-V10P-GS-AL-TRISYS
EAN-13:
8718591676277
Specifications
| Maximum Payload | 13 kg / 28,66 lbs |
|---|---|
| Bowl Diameter | 100 mm |
| Section | 2 Stages |
| Material | Aluminum |
| Camera Platform Type | Mini Euro plate |
| Camera Plate | Camgear WP-1 1/4" screw, 3/8" screw |
| Counterbalance System | 8 steps (1-8) |
| Pan & Tilt Drag | 4 steps (1-4) |
| Pan & Tilt Range | Pan: 360° / Tilt: +90/-75° |
| Temperature Range | '-40°C to +60°C/-40 to +140°F |
| Levelling Bubble | Yes, not illuminated |
| Pan Bar | Camgear PB-1 |
| Weight | 7,04 kg / 15,52 lbs |
| Height Range | 56 cm – 165 cm / 21.7 inch – 65 inch |
| Transport Length | 86 cm / 33.9 inch |
| Sliding Range | 60 mm / 2.36 inch |
You may also like…
-
Ground Spreader GS-2
Ground Spreader GS-2
For DV6P, V10, V12, V15P, V20P, V25P, V35P & all Elite Tripod Systems
-

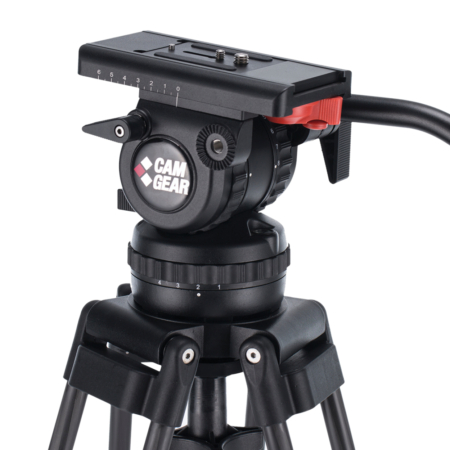

V10P Fluid Head
V10P Fluid Head
Fluid Head incl. Wedge Plate WP-1 & Pan Bar PB-1V-Series
Maximum Payload
13 kg / 28.66 lbs
Head Fitting
100 mm
Grade of drag Pan/Tilt
4 steps (1 - 4)
Counterbalance
8 steps (1-8)
-

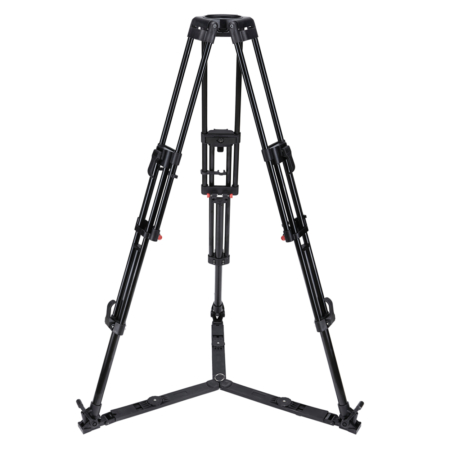

T100/AL2 GS Aluminum Tripod
T100/AL2 GS Aluminum Tripod
2-Stage 100mm bowl Tripod with Ground SpreaderV-Series
Maximum Payload
40 kg / 88.18 lbs
Head Fitting
100 mm
Height Range
43 cm - 158 cm / 17 inch - 62.2 inch
Weight
4.1 kg / 9.04 lbs
Related products
-
DV6P AL GS
DV6P AL GS
Tripod System incl. DV6P Fluid Head, T75/AL2 Aluminum Tripod, Pan Bar PB-1, Ground Spreader GS-2 & Tripod BagV-Series
Maximum Payload
10 kg / 22.05 lbs
Head Fitting
75 mm
Height Range
55 cm - 164 cm / 21.7 inch - 64.6 inch
Weight
6.72 kg / 14.82 lbs
-
V10 AL MS
V10 AL MS
Tripod System incl. V10 Fluid Head, T100/AL2 Aluminum Tripod, Pan Bar PB-1, Mid Level Spreader MSP-2, Rubber Feet RF-1 (x3) & Tripod BagV-Series
Maximum Payload
12 kg / 26.46 lbs
Head Fitting
100 mm
Height Range
65 cm - 165 cm / 25.6 inch - 65 inch
Weight
7.48 kg / 16.49 lbs
-

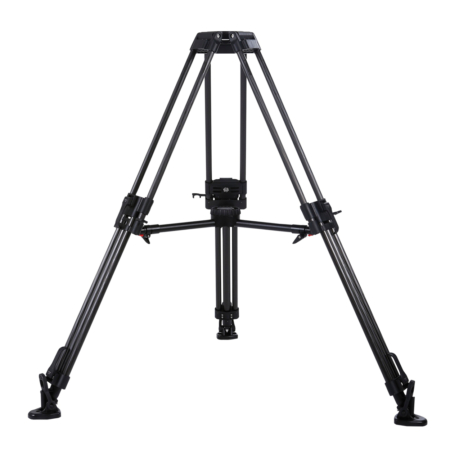

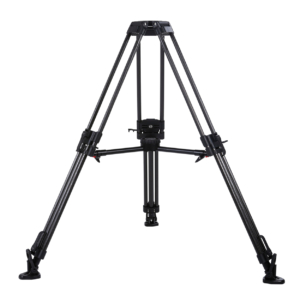

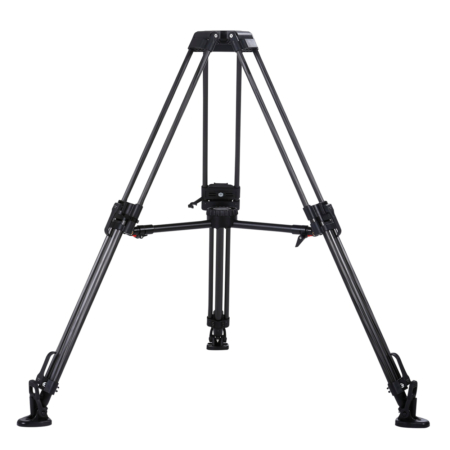

ENG/CF2 MS Carbon Fiber Tripod
ENG/CF2 MS Carbon Fiber Tripod
2-Stage 100mm bowl Tripod for ENG-work with Mid Level SpreaderV-Series
Maximum Payload
75 kg / 165.35 lbs
Head Fitting
100 mm
Height Range
52 cm - 150 cm / 20.5 inch - 59 inch
Weight
4.6 kg / 10.14 lbs
-

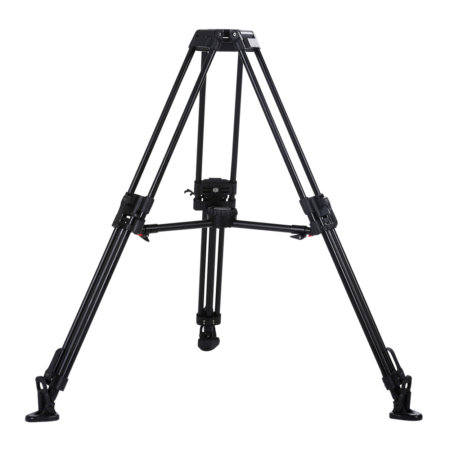

ENG/AL2 MS Aluminum Tripod
