V10 CF MS
Payload 12 kg Bowl 100 mm
- System
- Fluid Head

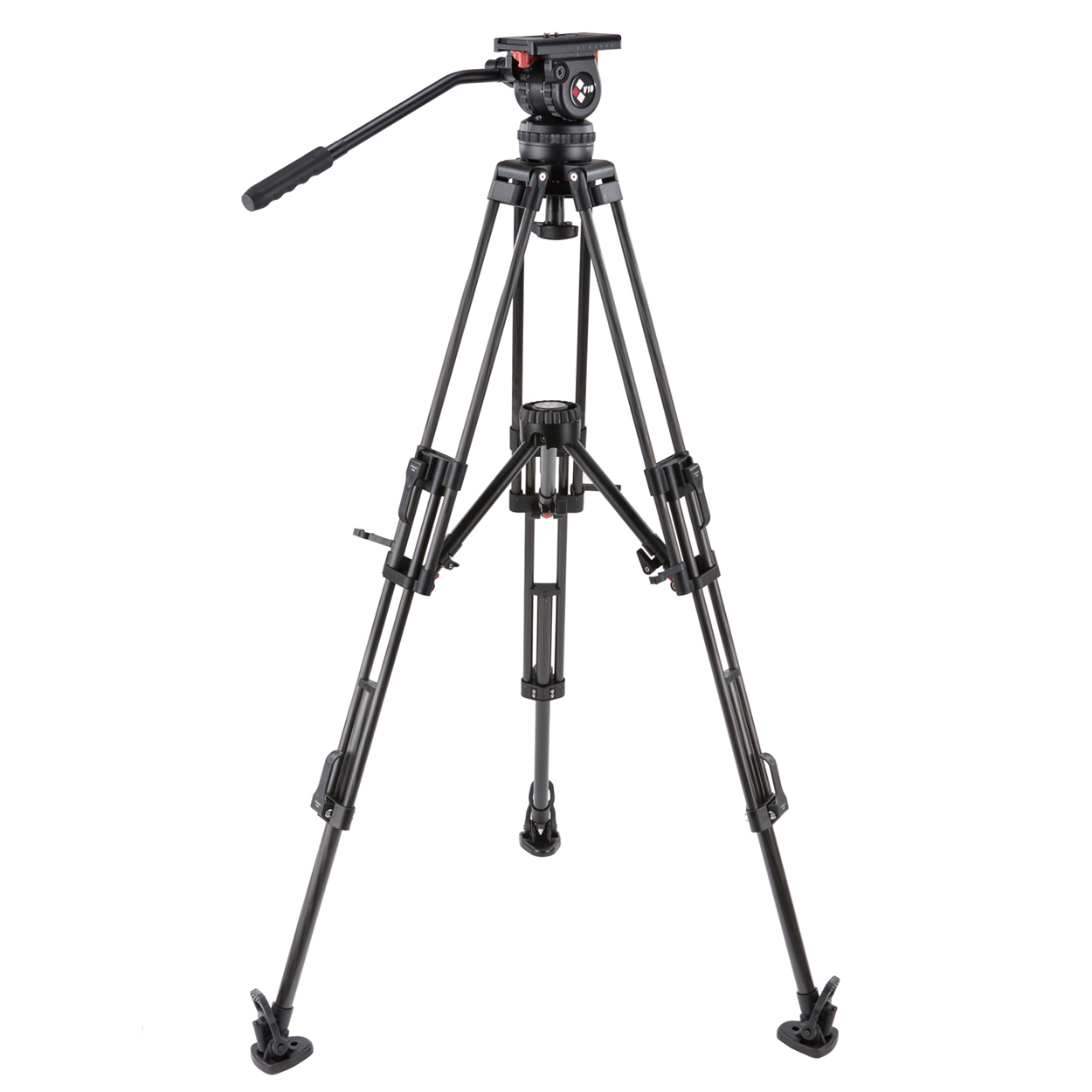

Tripod System incl. V10 Fluid Head, T100/CF2 Carbon Fiber Tripod, Pan Bar PB-1, Mid Level Spreader MSP-2, Rubber Feet RF-1 (x3) & Tripod Bag
V-Series
SKU:
CMG-V10-MS-CF-TRISYS
EAN-13:
8718591676239
Specifications
| Maximum Payload | 12 kg / 26,46 lbs |
|---|---|
| Bowl Diameter | 100 mm |
| Section | 2 Stages |
| Material | Carbon Fiber |
| Camera Platform Type | Mini Euro plate |
| Camera Plate | Camgear WP-1 1/4" screw, 3/8" screw |
| Counterbalance System | 6 steps (1-6) |
| Pan & Tilt Drag | 4 steps (1-4) |
| Pan & Tilt Range | Pan: 360° / Tilt: +90/-75° |
| Temperature Range | '-40°C to +60°C/-40 to +140°F |
| Levelling Bubble | Yes, not illuminated |
| Pan Bar | Camgear PB-1 |
| Weight | 6,66 kg / 14,68 lbs |
| Height Range | 65 cm – 165 cm / 25.6 inch – 65 inch |
| Transport Length | 86 cm / 33.9 inch |
| Sliding Range | 60 mm / 2.36 inch |
