V10 AL MS
Payload 12 kg Bowl 100 mm
- System
- Fluid Head

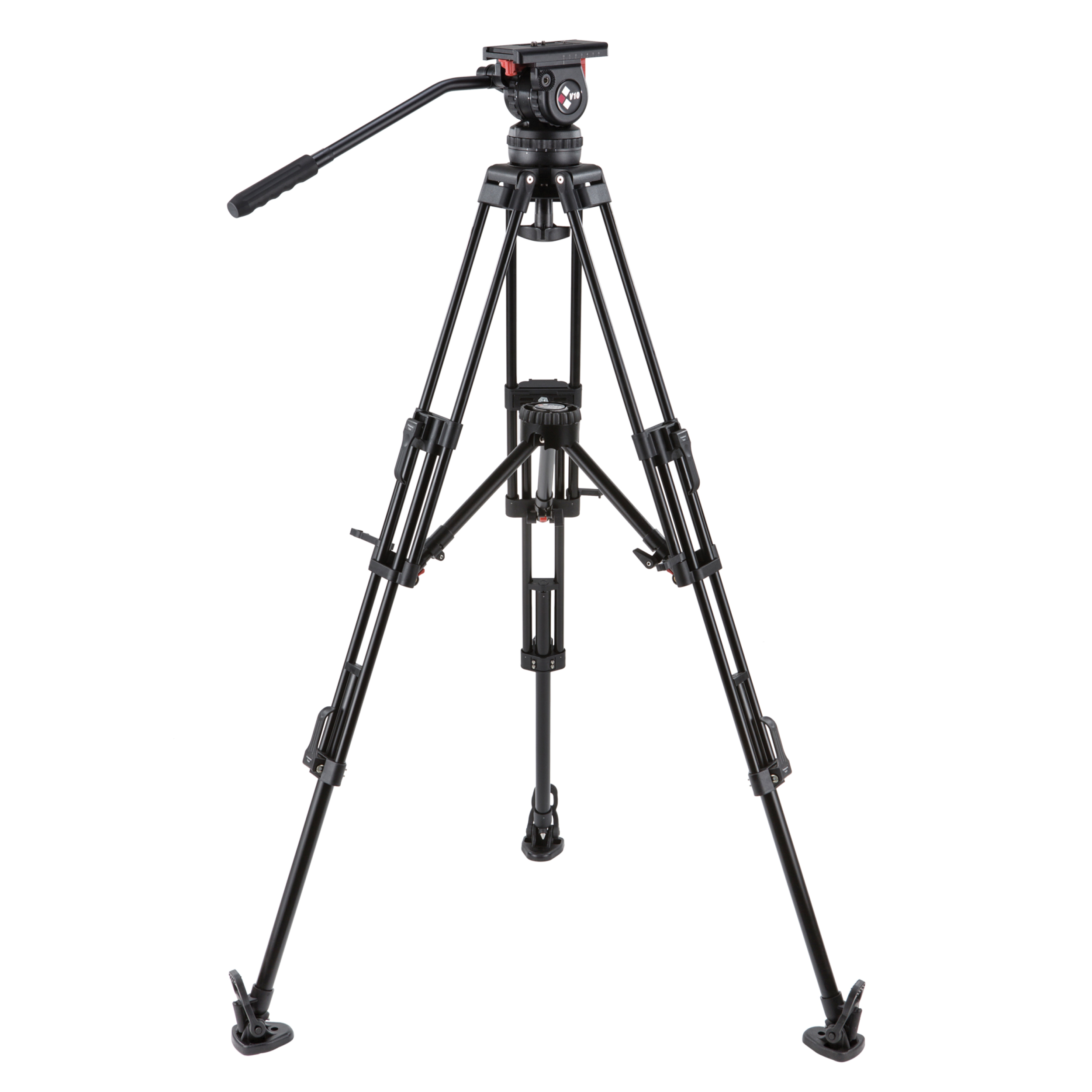

Tripod System incl. V10 Fluid Head, T100/AL2 Aluminum Tripod, Pan Bar PB-1, Mid Level Spreader MSP-2, Rubber Feet RF-1 (x3) & Tripod Bag
V-Series
SKU:
CMG-V10-MS-AL-TRISYS
EAN-13:
8718591676215
Specifications
| Maximum Payload | 12 kg / 26,46 lbs |
|---|---|
| Bowl Diameter | 100 mm |
| Section | 2 Stages |
| Material | Aluminum |
| Camera Platform Type | Mini Euro plate |
| Camera Plate | Camgear WP-1 1/4" screw, 3/8" screw |
| Counterbalance System | 6 steps (1-6) |
| Pan & Tilt Drag | 4 steps (1-4) |
| Pan & Tilt Range | Pan: 360° / Tilt: +90/-75° |
| Temperature Range | '-40°C to +60°C/-40 to +140°F |
| Levelling Bubble | Yes, not illuminated |
| Pan Bar | Camgear PB-1 |
| Weight | 7,48 kg / 16,49 lbs |
| Height Range | 65 cm – 165 cm / 25.6 inch – 65 inch |
| Transport Length | 86 cm / 33.9 inch |
| Sliding Range | 60 mm / 2.36 inch |
You may also like…
-
Rubber Feet RF-1 (set of 3)
Rubber Feet RF-1 (set of 3)
Required with Mid Level Spreader MSP-2 or MSP-3
Related Products
Related products
-
Telescopic Pan Bar PB-4 (set of 2)
Telescopic Pan Bar PB-4 (set of 2)
For DV6P, V10, V10P, V12, V15P & V20S Tripod Systems
V10 Fluid Head
Payload 12 kg Bowl 100 mm
V-Series
Fluid Head incl. Wedge Plate WP-1 & Pan Bar PB-1
SKU: CMG-V10-FLHEAD
EAN-13: 8718591676208
Specifications
| Maximum Payload | 12 kg / 26,46 lbs |
|---|---|
| Bowl Diameter | 100 mm |
| Camera Platform Type | Mini Euro plate |
| Camera Plate | Camgear WP-1 1/4" screw, 3/8" screw |
| Counterbalance System | 6 steps (1-6) |
| Pan & Tilt Drag | 4 steps (1-4) |
| Pan & Tilt Range | Pan: 360° / Tilt: +90/-75° |
| Temperature Range | '-40°C to +60°C/-40 to +140°F |
| Levelling Bubble | Yes, not illuminated |
| Pan Bar | Camgear PB-1 |
| Weight | 2,5 kg / 5,51 lbs |
| Sliding Range | 60 mm / 2.36 inch |
