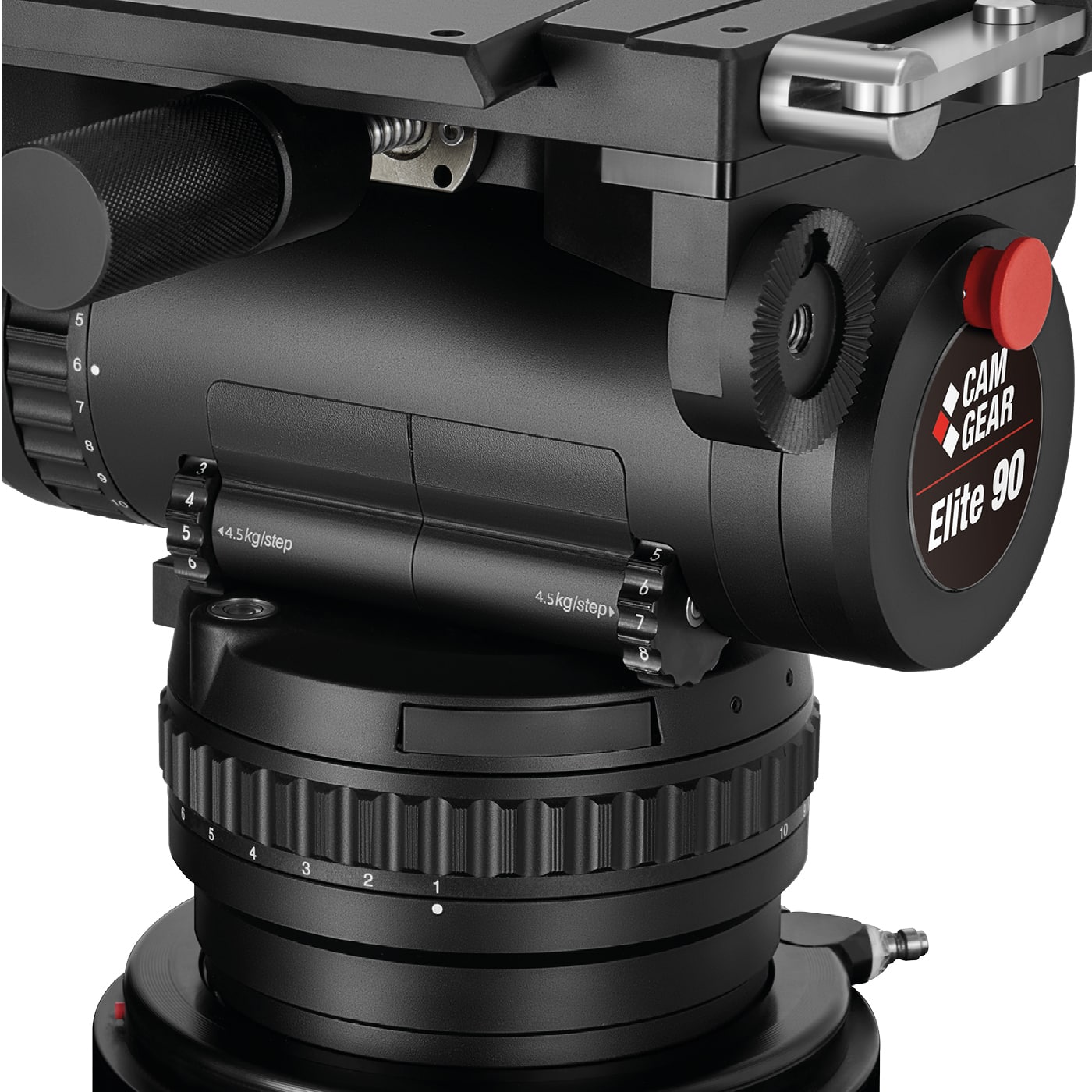

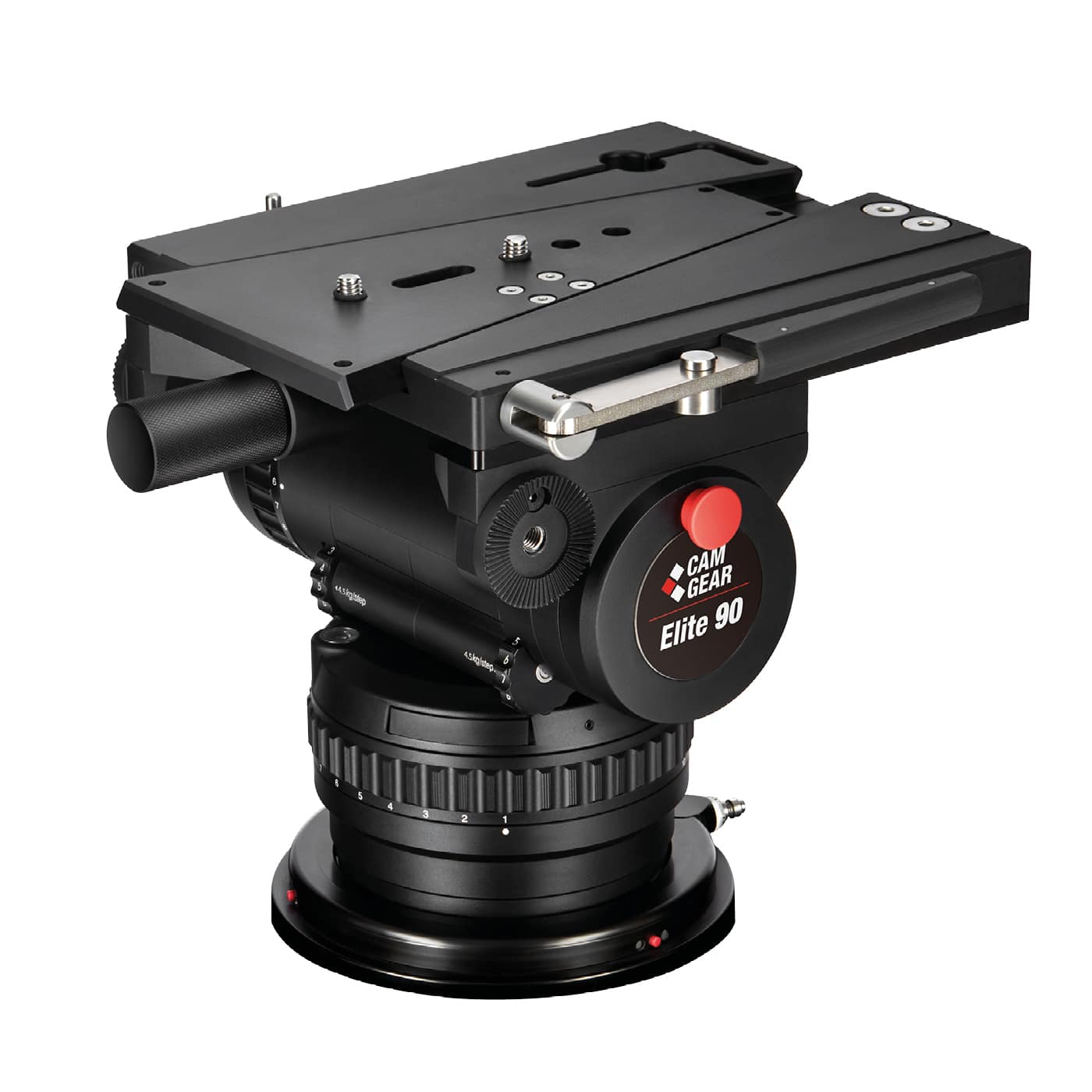

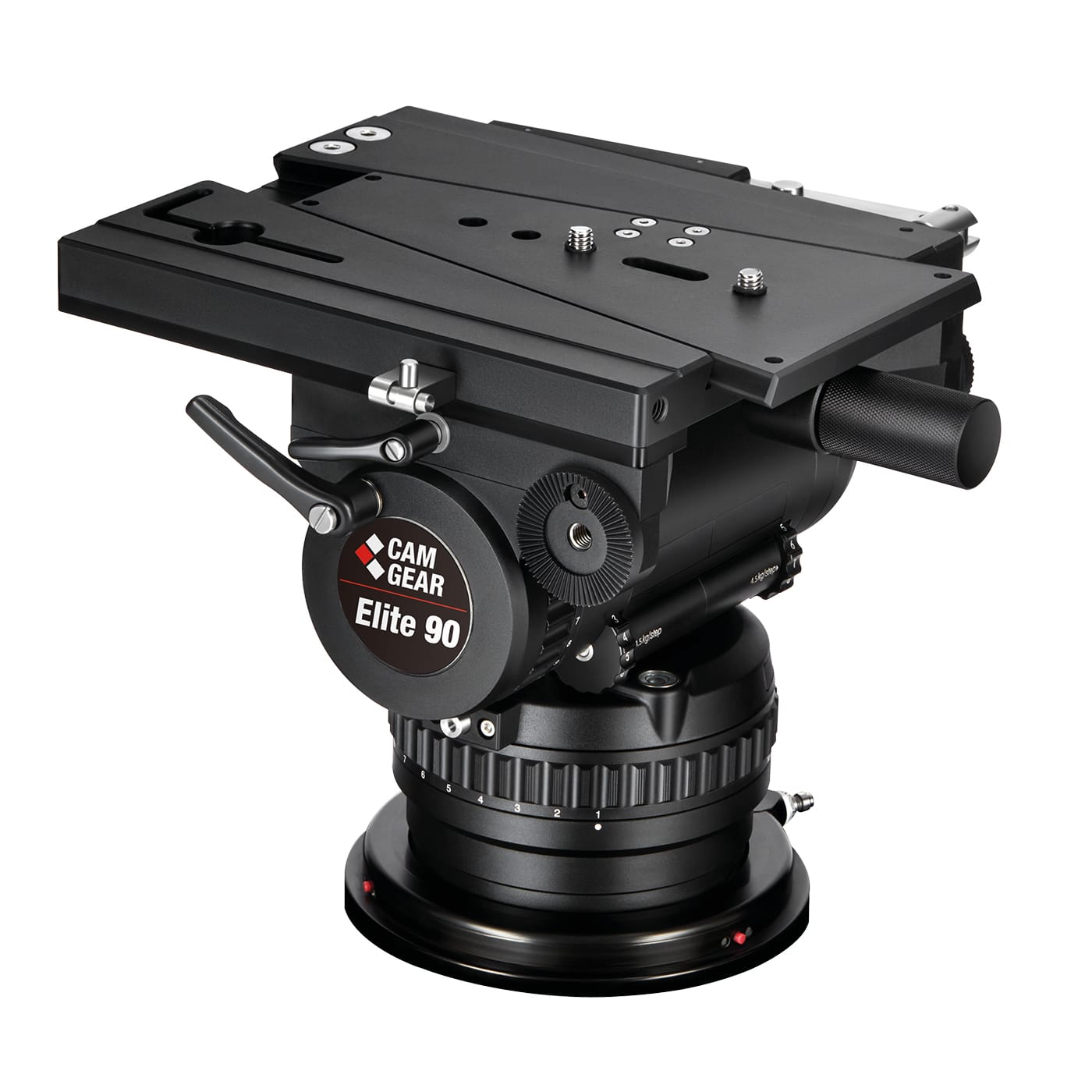

Elite 90 Studio/OB Fluid Head

Bowl 4-bolt Flat Base

4-Bolt Flat Base Fluid Head including V-Plate & 2x Telescopic Pan Bar PB-3 (Left & Right) (Mitchell Adapter and Locking Knob are not included)

Elite-Series

SKU: CMG-EL90-FLHEAD
EAN-13: 6154428180104

Maximum Payload	90 kg / 198,42 lbs
Camera Platform Type	V-Plate
Camera Plate	Camgear V-Plate , Double 3/8" screw
Counterbalance System	14+14 steps (1-14, 1-14)
Pan & Tilt Drag	10 steps (1-10)
Pan & Tilt Range	Pan: 360° / Tilt: +90/-75°
Temperature Range	'-40°C to +60°C/-40 to +140°F
Levelling Bubble	Yes, Illuminated
Pan Bar	Camgear Telescopic PB-3 (set of 2, left & right)
Weight	18.5 kg / 40.8 lbs
Sliding Range	180 mm / 7.1 inch
