Elite 8 CF GS
Payload 10 kg Bowl 75 mm
- System
- Fluid Head

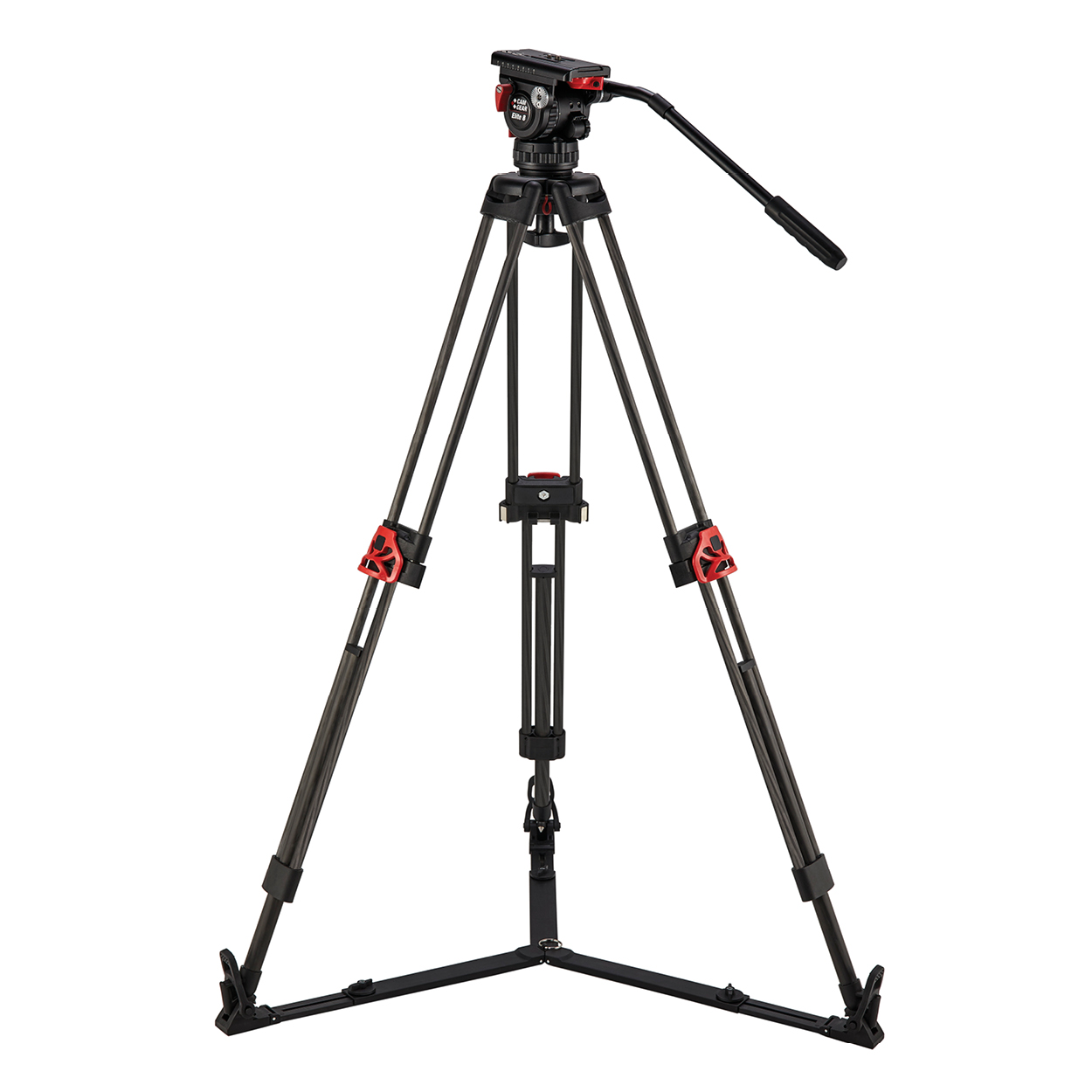

Tripod System incl. Elite 8 Fluid Head, 3S-Fix T75/CF2 Carbon Fiber Tripod, Elite Pan Bar ELPB-1, Ground Spreader GS-2 & Tripod Bag
Elite-Series
SKU:
CMG-EL8-GS-CF-TRISYS
EAN-13:
8718591677328
Specifications
| Maximum Payload | 10 kg / 22,05 lbs |
|---|---|
| Bowl Diameter | 75 mm |
| Section | 2 Stages |
| Material | Carbon Fiber |
| Camera Platform Type | Touch & Go DV |
| Camera Plate | Camgear TNG-DV 1/4" screw, 3/8" screw |
| Counterbalance System | 10 steps (1-10) |
| Pan & Tilt Drag | 4 steps (1-4) |
| Pan & Tilt Range | Pan: 360° / Tilt: +90/-75° |
| Temperature Range | '-40°C to +60°C/-40 to +140°F |
| Levelling Bubble | Yes, not illuminated |
| Pan Bar | Camgear ELPB-1 |
| Weight | 7,45 kg / 16,42 lbs |
| Height Range | 51 cm – 168 cm / 20 inch – 66.1 inch |
| Transport Length | 87 cm / 34.3 inch |
| Sliding Range | 70 mm / 2.75 inch |
