DV6P CF MS
Payload 10 kg Bowl 75 mm
- System
- Fluid Head

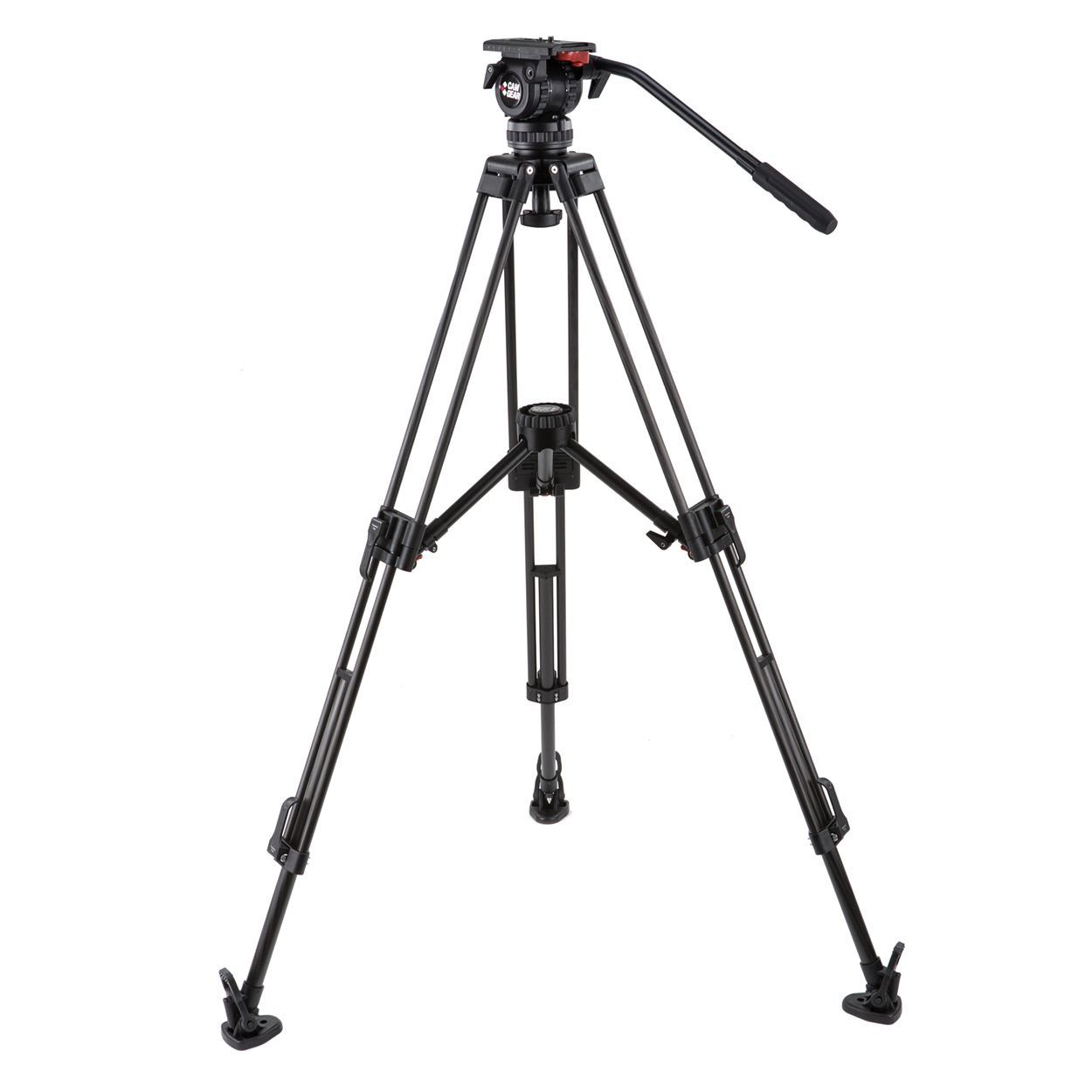

Tripod System incl. DV6P Fluid Head, T75/CF2 Carbon Fiber Tripod, Pan Bar PB-1, Mid Level Spreader MSP-2, Rubber Feet RF-1 (x3) & Tripod Bag
V-Series
SKU:
CMG-DV6P-MS-CF-TRISYS
EAN-13:
8718591676185
Specifications
| Maximum Payload | 10 kg / 22,05 lbs |
|---|---|
| Bowl Diameter | 75 mm |
| Section | 2 Stages |
| Material | Carbon Fiber |
| Camera Platform Type | Mini Euro plate |
| Camera Plate | Camgear WP-2 1/4" screw, 3/8" screw |
| Counterbalance System | 8 steps (1-8) |
| Pan & Tilt Drag | 4 steps (1-4) |
| Pan & Tilt Range | Pan: 360° / Tilt: +90/-75° |
| Temperature Range | '-40°C to +60°C/-40 to +140°F |
| Levelling Bubble | Yes, not illuminated |
| Pan Bar | Camgear PB-1 |
| Weight | 6,34 kg / 13,98 lbs |
| Height Range | 64 cm – 164 cm / 25.2 inch – 64.6 inch |
| Transport Length | 85 cm / 33.5 inch |
| Sliding Range | 60 mm / 2.36 inch |
